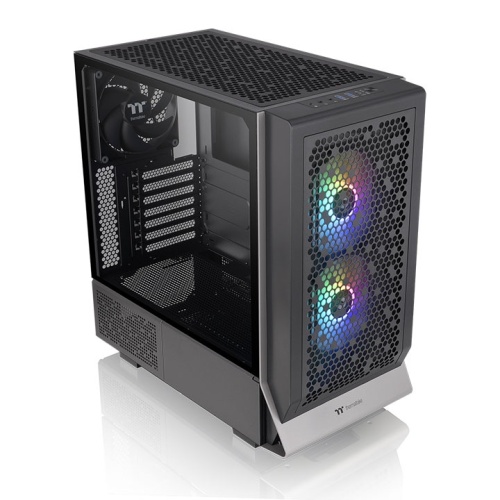

Ceres 300 TG ARGB Mid Tower Chassis is an ATX case that comes with two CT140 ARGB Sync PC Cooling Fans pre-installed at the front and one CT140 PC Cooling Fan pre-installed at the rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Up to 55% of its panels are perforated to provide a large amount of airflow. Besides, up to five 140mm fans or seven 120mm fans can be installed in the chassis, and one 360mm radiator can be placed at the front and up to one 280mm radiator can be placed at the top of the chassis to provide countless hardware options.
- The image is for reference only.
Our Ceres 300 provides a lot of possibilities for cooling components. Users can choose to place a 360mm radiator at the front and a 280mm at the top.
- The image is for reference only.
The 4mm tempered glass panel on the left side offers stunning views and also allows users to fully display and admire all components in their full RGB glory.
Maximize your Ceres 300’s visual effects by upgrading it with our optimal LCD Panel Kit. The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus 2.0 software. It also allows you to interact with the cooling components that feature the same LCD displays. The latest version includes weather mode and time mode for users to expand the usage of our LCD displays.
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT |
Input Voltage: 100-240V~
|
||||
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
| Max Output Current |
18A |
18A |
54.2A |
0.3A |
2.5A |
| Max Output Power |
100W |
750W |
3.6W |
12.5W |
|
| Total Power |
750W |
||||
- The image is for reference only.
Soft black cables come with sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) |
X 1 |
|
X 1 | 600mm |
| ATX 12V (4+4Pin) |
X 1 |
|
X 1 | 650mm |
| PCIe (6+2Pin) |
X 2 |
|
X 1 | 500mm+150mm |
| SATA (5Pin) |
X 6 |
|
X 2 | 500mm+150mm+150mm |
| Peripheral (4Pin) |
X 4 |
|
X 1 | 500mm+150mm +150mm+150mm |
| FDD Adapter | X 1 |
|
X 1 | 150mm |
- The image is for reference only.
There are fine removable filters at the top, front, bottom, left and right side of the chassis to provide excellent protection against dirt, and they are easily removable for cleaning.
- The image is for reference only.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top of the front panel to grant direct access when needed.
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | 420 Series | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | - |
| Top | ● | ● | - | ● | ● | - |
| Rear | ● | - | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 2 | - |
| Top | 3 | 2 | - |
| Rear | 1 | 1 | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CA-3Y2-75M1WU-00 |
|---|---|
| Series | S Series |
| Model | S200 TG ARGB C+P |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 460x 210 x 395.3 mm (18.11 x 8.27 x 15.56 inch) |
| Net Weight | 6.45 kg / 14.22 lbs. |
| Side Panel | 3 mm Tempered Glass x 1 |
| Color | Black |
| Material | SPCC |
| Cooling System | Front (intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3 Rear (exhaust) : 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Drive Bays -Accessible -Hidden |
2 x 3.5”, 2 x 2.5” or 1 x 3.5”, 3 x 2.5” |
| Expansion Slots | 7 |
| Motherboards | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| I/O Port | USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PSU 80+Bronze |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
| Clearance | CPU cooler max height: 166mm VGA max length: 300mm (with radiator) 330mm (without radiator) PSU max length: 190mm (with HDD Cage) |
