17mm height CPU cooler with unique metallic structure supports a very small form factor and up to 35W cooling power

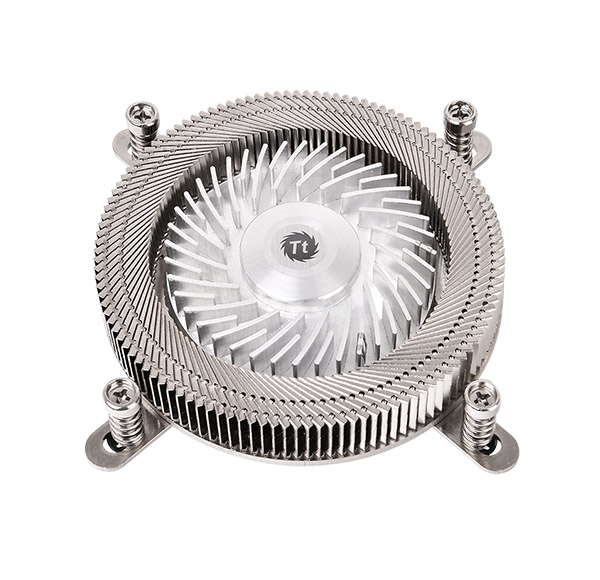

Thermaltake Engine 17 is a low-profile air cooling solution for Intel socket LGA 1150/1151/1155/1156 type CPU. Featuring 17mm height with a compact size 60mm PWM fan, it is also a great choice for any small form factor applications. The unique metallic structure (metallic blades and fins) with copper base guarantees extremely quiet, yet powerful operation. The Engine 17 is the new standard in CPU air cooling technology, and it is exclusive to Thermaltake.

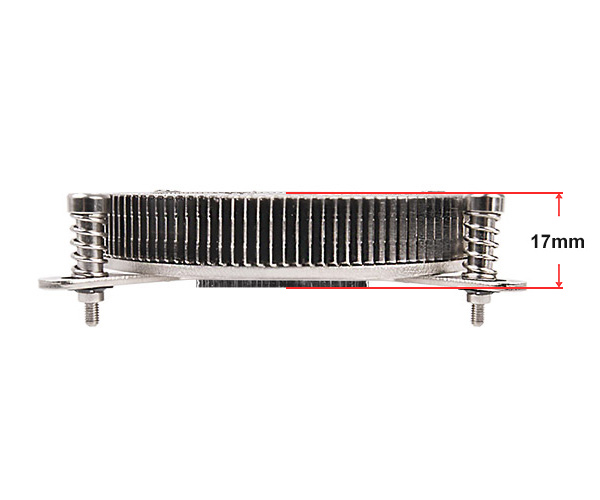

Designed with 17mm height, the Engine 17 is the ideal CPU cooling solution for slim and small form factor applications, such as 1U server, HTPC, AIO/PIO PC, POS terminal and Booksize/Mini PC.

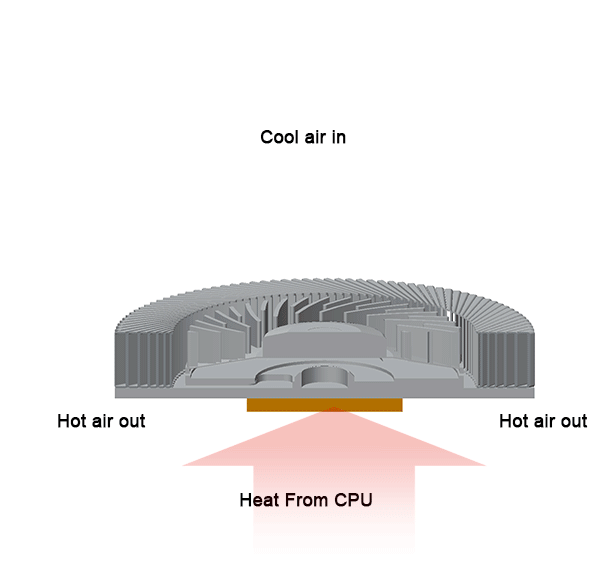

Unlike traditional CPU coolers, the Engine 17 features a metallic structure and copper base that provides more fortified and efficient thermal paths for CPU. The metallic fan is designed to directly pull heat from CPU. Especially, the metallic fan base is engineered with small radial gaps that allow heat to be transferred rapidly to the rotating metallic fan. When the metallic fan blades generate cooling airflow, heat will also be transferred to the flowing air by both rotating fan and stationary fan base at the same time.

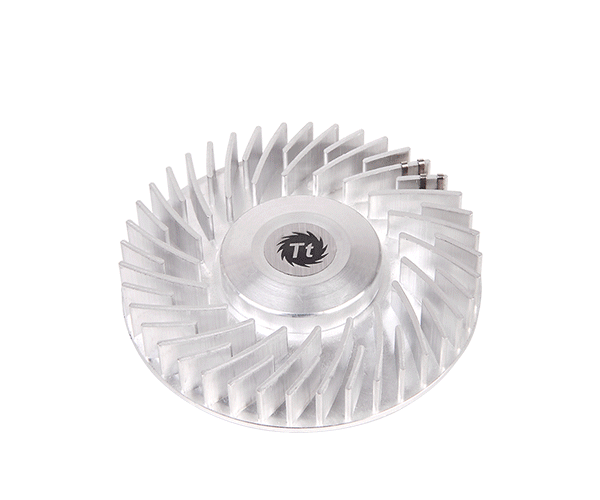

Metallic fan with unique 40 blades design is engineered to generate higher airflow passing through the heatsink without sacrificing ultra-silent operation. The metallic blade rotation will create a centrifugal force on ambient air. In the meanwhile, the centrifugal forces will expel hot air so that heat can easily be taken away from the fan blades. Most importantly, this cooling technique can reduce the blade’s noise and vibration because hot air expelled will create a vacuum, and then fresh cooling air will be drawn in the heatsink.
The Engine 17 is specially designed with metallic radial fins to accelerate the thermal transfer process. Especially, the radial arrangement with 119 fin design can minimize the gap between the fan and the fins, thus, hot air can be exhausted more rapidly and efficiently.
The PWM function enables the motherboard to run the fan precisely at its necessary speed. The noise level can reduce to 11dBA. This guarantees ultra-quiet noise level without compromising on the cooling performance.
*Due to Engine 17 is using 8-pole motor, the RPM read by Bios is twice of the real RPM.

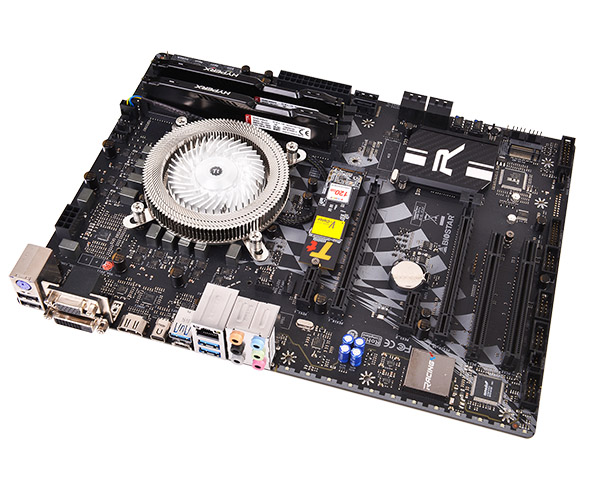

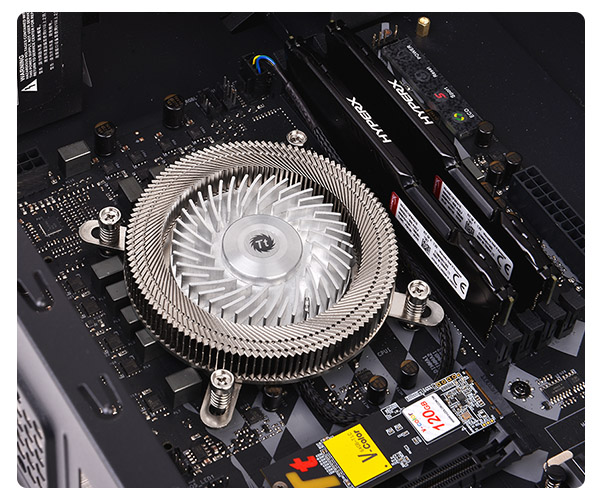

The Engine 17 perfectly solves the co-existing problem of high performance RAM and CPU coolers, achieving the best RAM clearance.
|Compatibility||Intel LGA 1156 / 1155 / 1150 / 1151
|Dimension||17 ± 1(H)*91.5(L)*91.5(W) mm|
|Fan Dimension||12.6(H) x 60(L) x 60(W) mm|
|Fan Speed||1500~2500 RPM|
|Start Voltage||9.0 V|
|Rated Current||0.25 A|
|Air Flow||8.9 CFM|
|Air Pressure||2.4 mm-H2O|
|Acoustical Noise||11~23 dBA|
|Life time/Fan Life time||50,000 hours|
|pin connect||4 pin PWM|
|Cooling Power||35 W|
