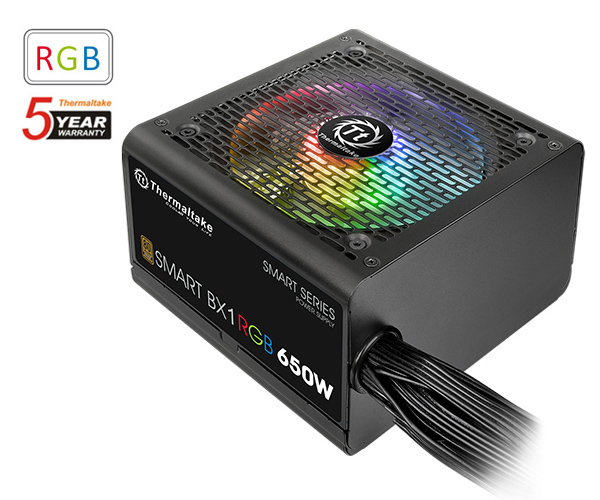

Smart BX1 RGB 650W (230V)
80 PLUS Bronze certified non-modular PSU with 256-color 10 LED RGB fan.
Built to deliver 80 PLUS Bronze efficiency, Smart BX1 RGB series is available in 550W, 650W, and 750W models. The preinstalled
10 LED RGB fan provides excellent airflow, and also 3 lighting modes, 7 color options, LED Off, and a built-in
memory function, which saves the colors applied and insure the same color selection every time you boot your PC.
Comes with premium components, stable continuous power output at 40℃, and ample 5-year warranty, its near silent operation, trouble free installation and reliable performance have made itself satisfy the market where value-oriented users are looking for a power supply with advanced features and aesthetic appeal.
The 10 RGB LEDs come preinstalled on the 120mm fan. Capable of displaying 7 colors(Red, Green, Blue, Yellow, Purple, Light
Blue, and White), 3 illumination modes including Pulse, Full-lighted and RGB Cycle, and an LED Off mode.
* All images are for reference only; actual specification and lighting effects are based on the real product.

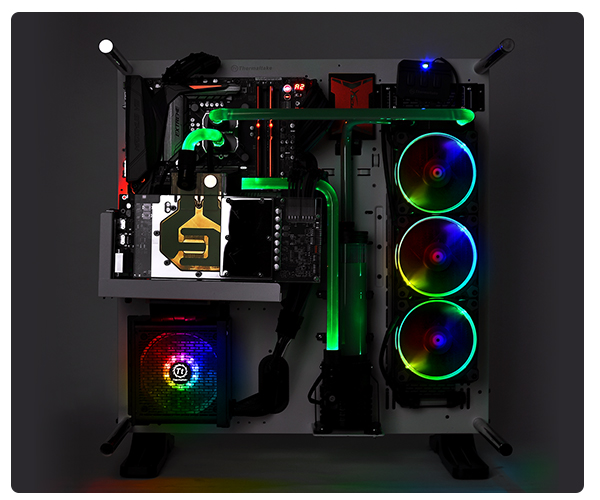

Adding personal appeal to your build has never been so easy by just pressing one RGB lighting button! There is also a built-in memory function to save the color applied and insure the same color selection every time you boot your PC.
Featuring an 120mm Hydraulic Bearing Fan with intelligent RPM control to guarantee superior cooling performance and silent operation.
All ripples are lower than 80mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.
Greatly improves the durability and offers the highest stability and reliability.
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
Soft black cables come with sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage.
80 PLUS 230V Bronze Certified and Intel C6/C7 States Ready
Smart BX1 RGB series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Smart BX1 RGB Series is the best idea for users to go with when they are looking for an RGB PSU that permits remarkable
functionality and aesthetics in all cases.
|Factor de Forma||ATX|
|Tipo||ATX 12V v2.4 and EPS v2.92|
|Max. Output Capacity||650W|
|Peak Output Capacity||780W|
|Dimension ( W / H / D )||150mm(W) x 86mm(H) x 140mm(D)|
|PFC (Power Factor Correction)||Active PFC|
|Power Good Signal||100-500 msec|
|Hold Up Time||> 16msec at 70% of full load|
|Input Current||10A max.|
|Input Frequency Range||50Hz|
|Operating Temperature||5°C to + 40°C|
|Storage Temperature||-40°C to + 55°C|
|Storage Humidity||10% to 95%, non-condensing|
|Cooling System||12cm Fan Hub|
|Efficiency||Meet 80 PLUS®Bronze at 230V EU|
|MTBF||100,000 hrs minimum|
|Protection||OVP, OPP, SCP|
