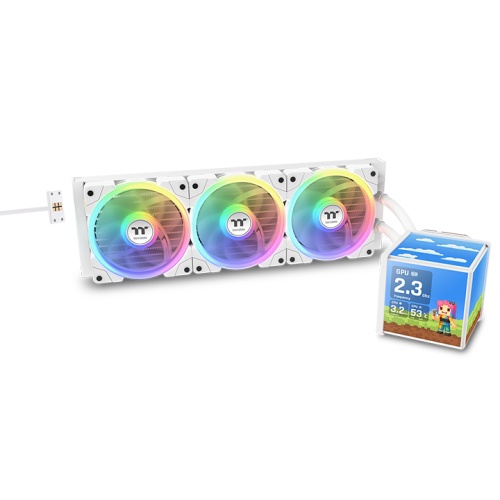

MINECUBE 360 Ultra ARGB Sync AIO Liquid Cooler - Snow Edition

MINECUBE 360 Ultra ARGB Sync AIO Liquid Cooler - Snow Edition

Out of stock

P/N

CL-W482-PL12SW-A

USD$349,99

MINECUBE 360 Ultra ARGB Sync Snow Edition features a Patented Quad-LCD Cube Display, composed of four 3.95” TFT LCDs. Each LCD display can independently showcase system information, custom visuals, or combine into a multi-screen layout for a single expansive illustration. This AIO liquid cooler includes SWAFAN EX fans with MAGForce 2.0 Quick Connection Design and Swappable Fan Blade Design, minimizing cable clutter while fully presenting dual-ring RGB lighting in different airflow directions.

Patented Quad-LCD Cube Design

Four 3.95’’ TFT LCDs with 720x720 Resolution

Immersive Multi-Screen Fusion

The Quad-LCD Cube Design reimagines the art of creative expression. Each of the four 3.95” LCD displays can operate independently, presenting striking backgrounds and real-time data for a versatile showcase. When combined, the displays blend seamlessly into one expansive canvas, delivering a refined illustration that stretches around the cube. This transformative mode turns your cooler into an interactive centerpiece, showing visuals that feel both distinctive and captivating.

Next-Level Personalization with TT LCD Screen Software

TT LCD Screen Software is an advanced tool designed for MINECUBE’s Quad-LCD Cube Display. With highly flexible controls, you can freely choose backgrounds and display as much real-time information as you need, arranging layouts effortlessly to suit your preferences. Easily create a fully personalized screen that reflects your style.

Check out more animated GIFs for your AIO displays here.

Download Software

Download User Manual

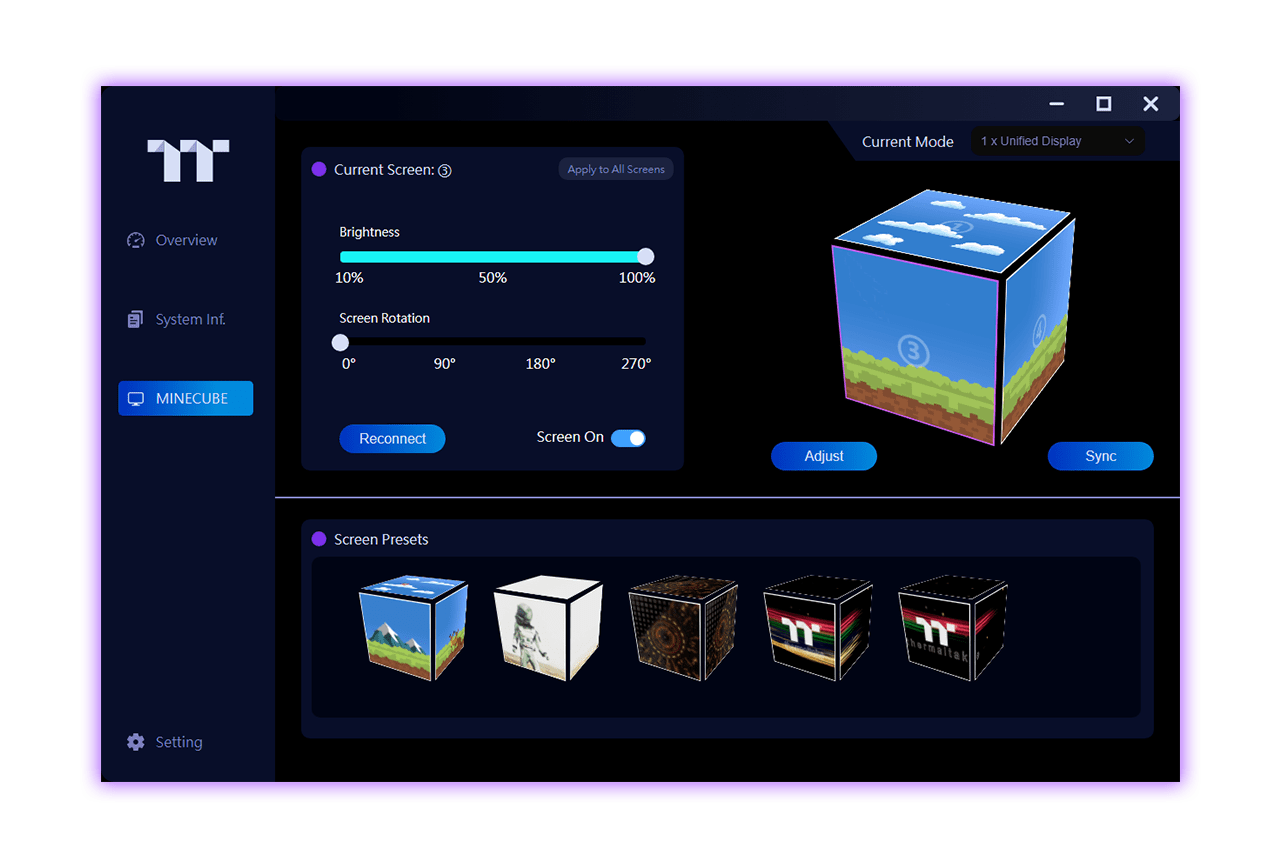

Screen Selection

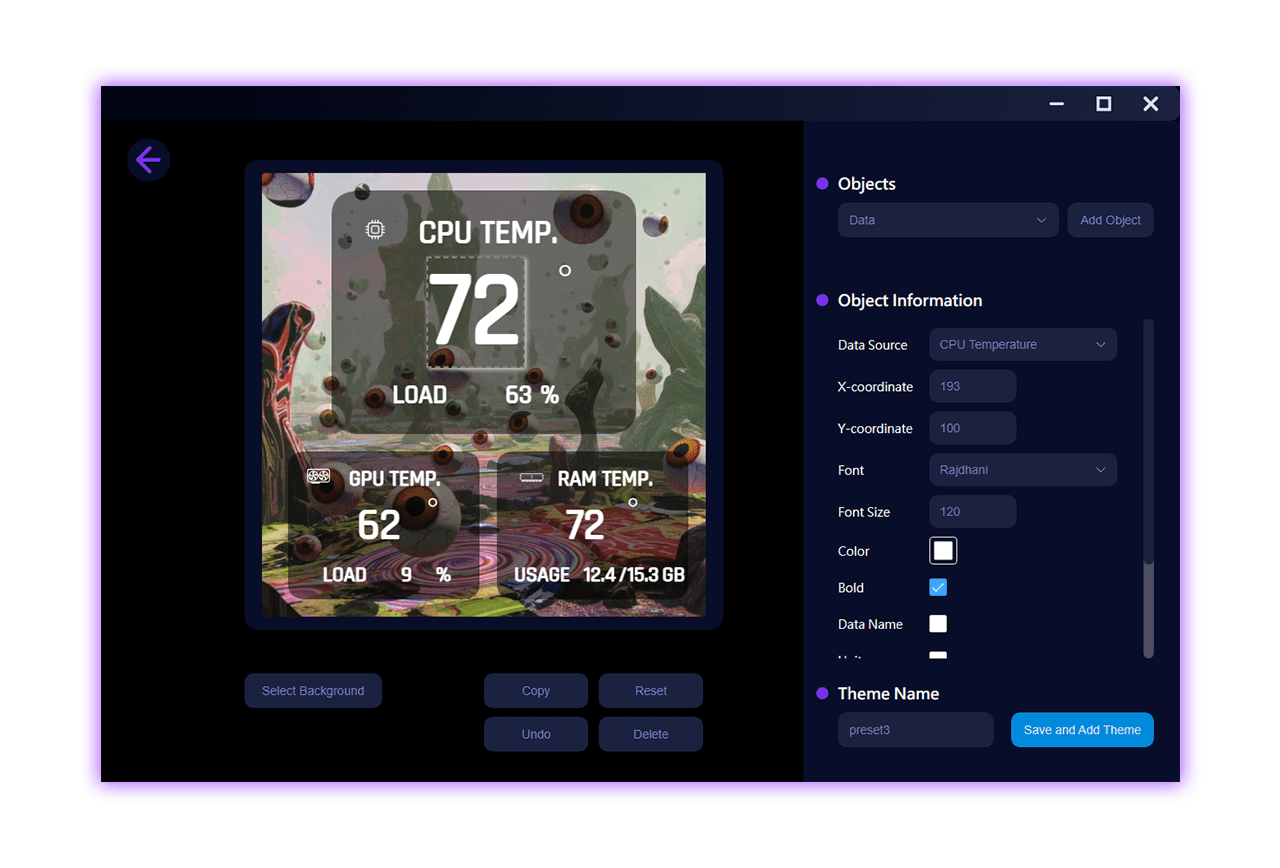

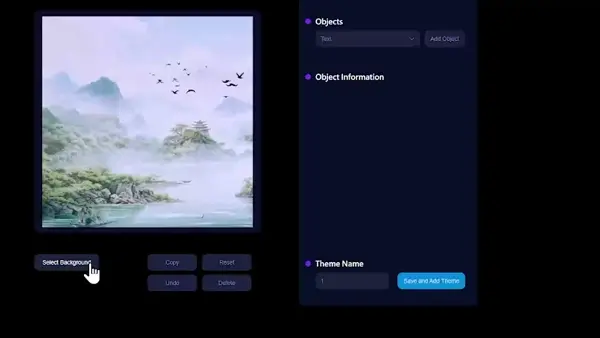

Display Editor

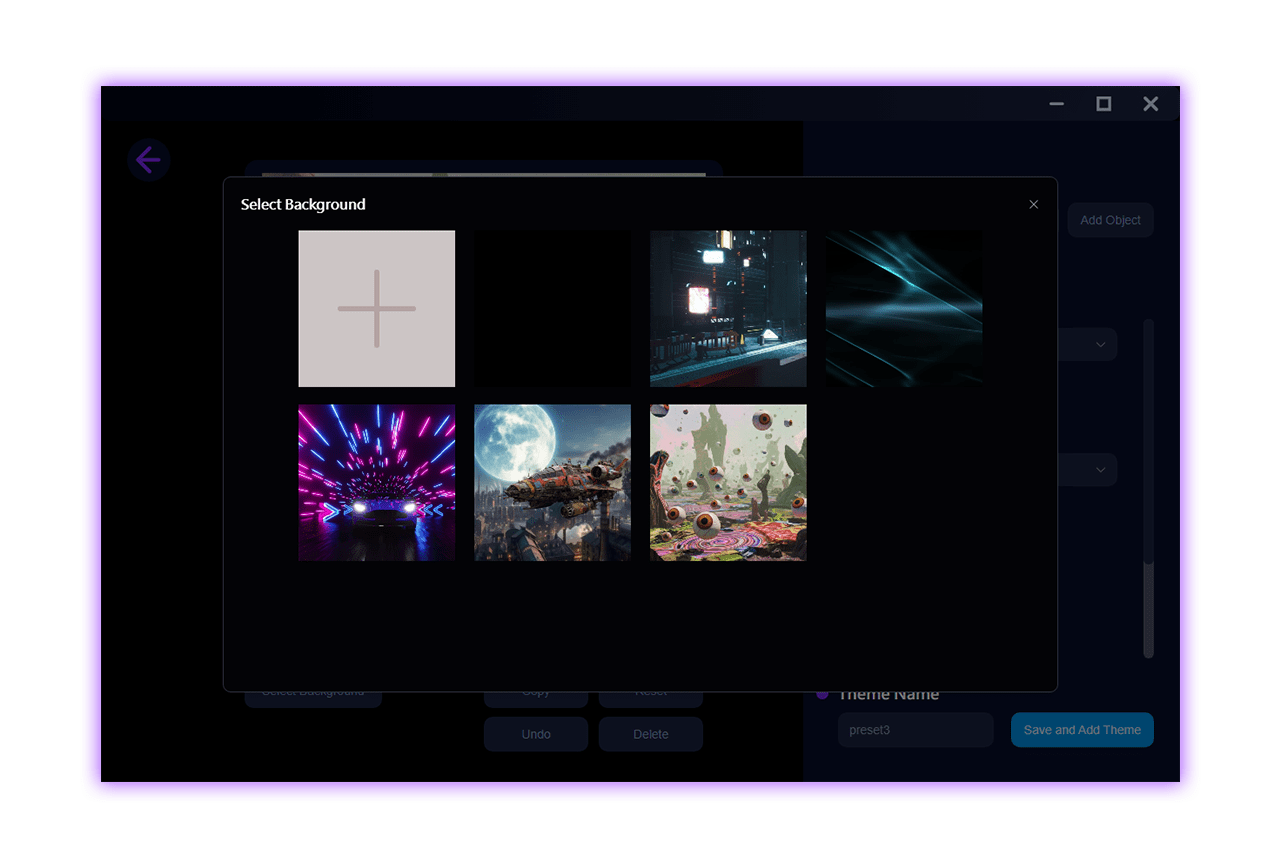

Background Selection

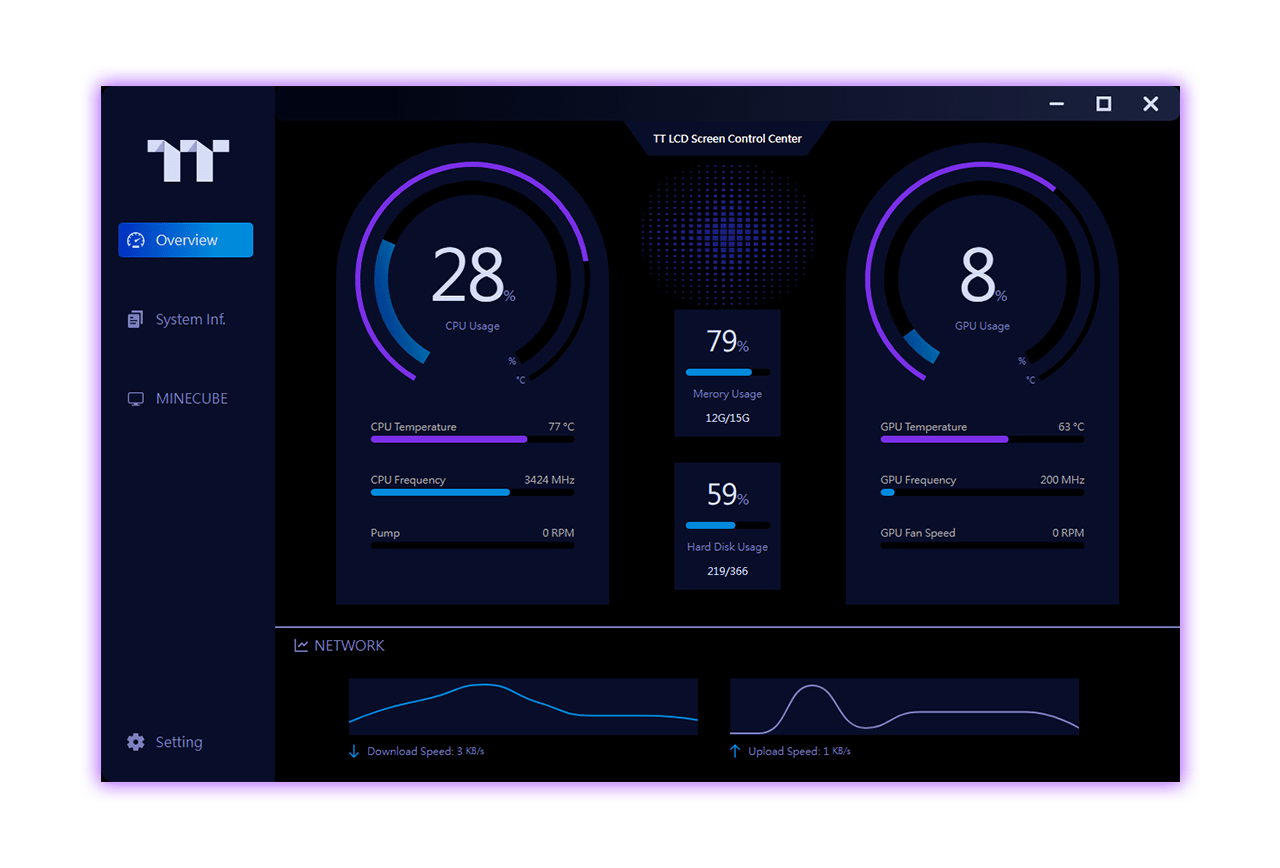

Real-Time System Overview

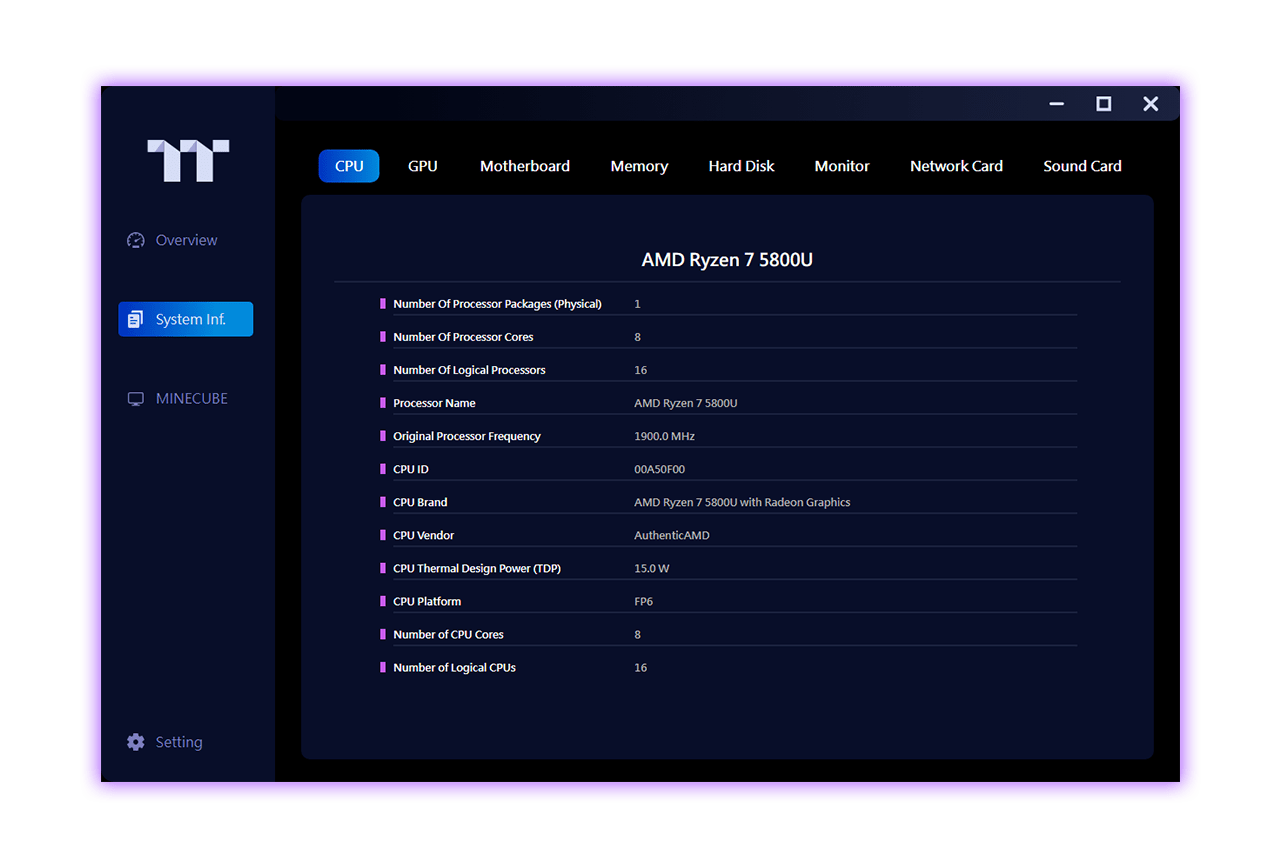

Hardware Specifications

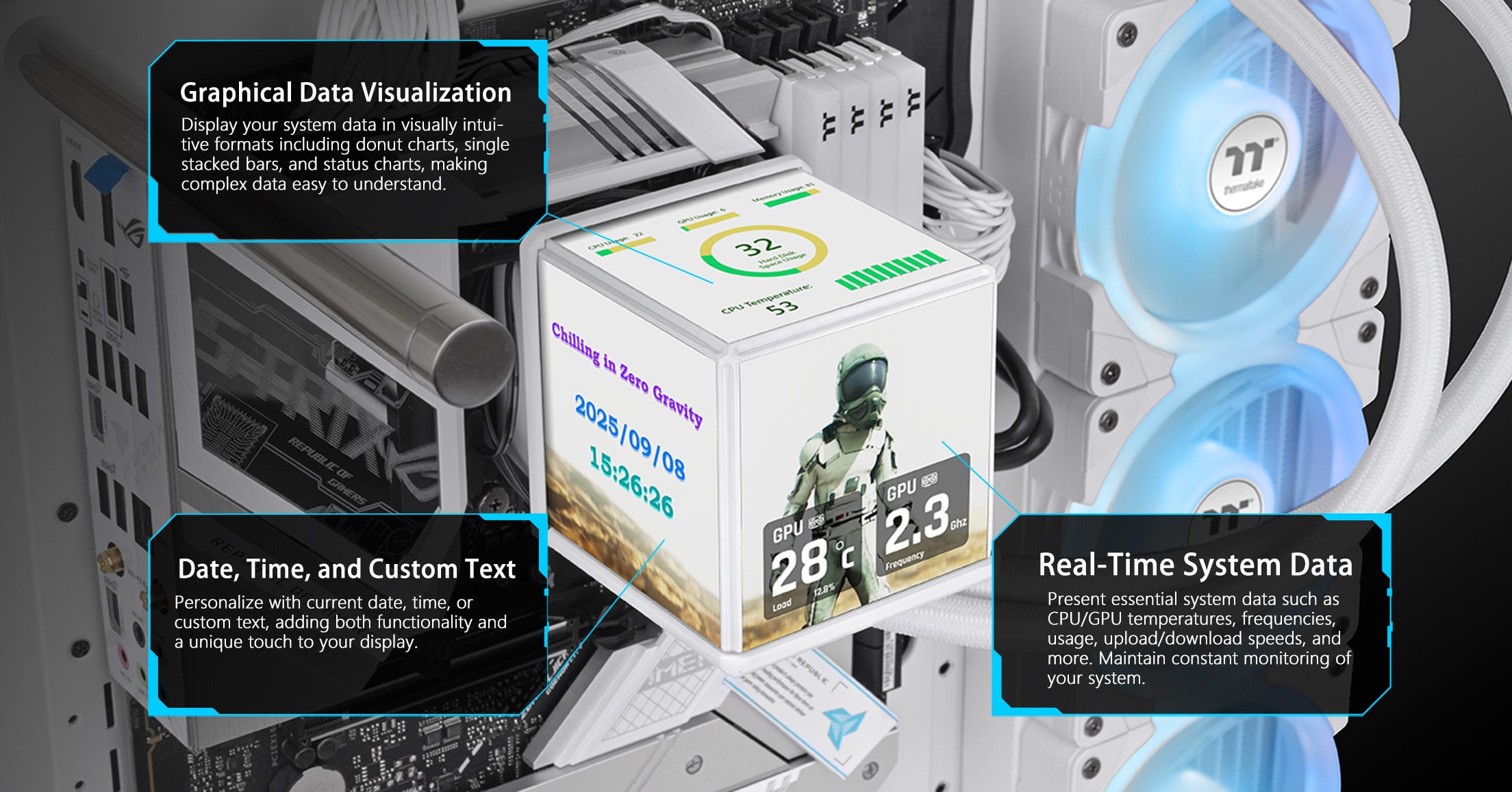

Maximize Insights with Diverse Information Presentation

MINECUBE Snow Edition’s Quad-LCD Cube empowers you to display multiple types of information at the same time, providing a comprehensive view at a glance. Keep critical data always visible for accurate monitoring and precise system management, ensuring you remain informed and fully in control.

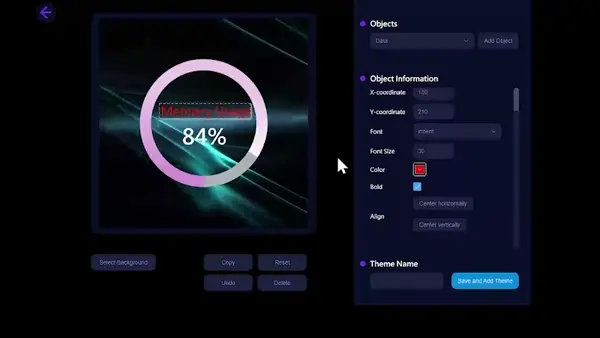

Tailor Every Detail of Your Information

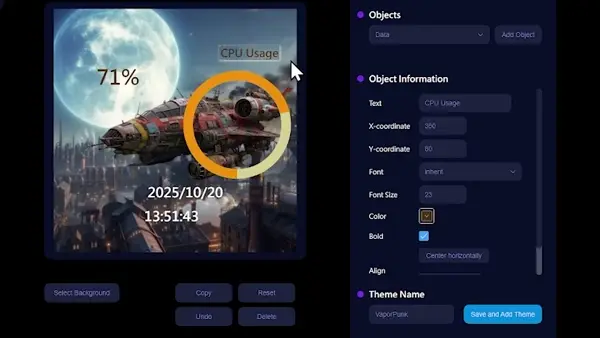

MINECUBE Snow Edition allows you to fine-tune every detail of your real-time system information. Choose from a variety of backgrounds, adjust the position and size, and customize the colors and fonts for each information element. This level of flexibility ensures that your display is not only informative but also visually aligned with your personal style.

Background

Layout

Color

Font

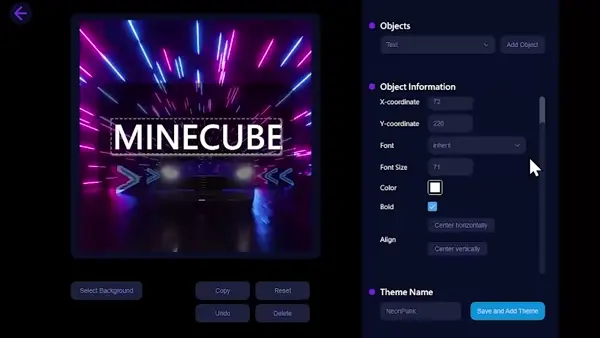

Preset Dynamic Backgrounds for Captivating Displays

With the TT LCD Screen Software, you can elevate your display with optimized preset visuals, offering seamless multi-screen animations across all four LCD displays as well as dynamic backgrounds on a single screen. The software also supports a wide range of formats, including JPG, GIF, PNG, MP4, MOV, and AVI. Effortlessly upload your favorite images or videos to unlock creativity and achieve a distinct, personalized visual effect.

TT Girl

Astronaut

Cube

TT Spectrum

CityPunk

WeirdCore

VaporPunk

NeonPunk

Chinese Ink Painting

Minimalist

Unlocks the Full Potential of RGB Lighting

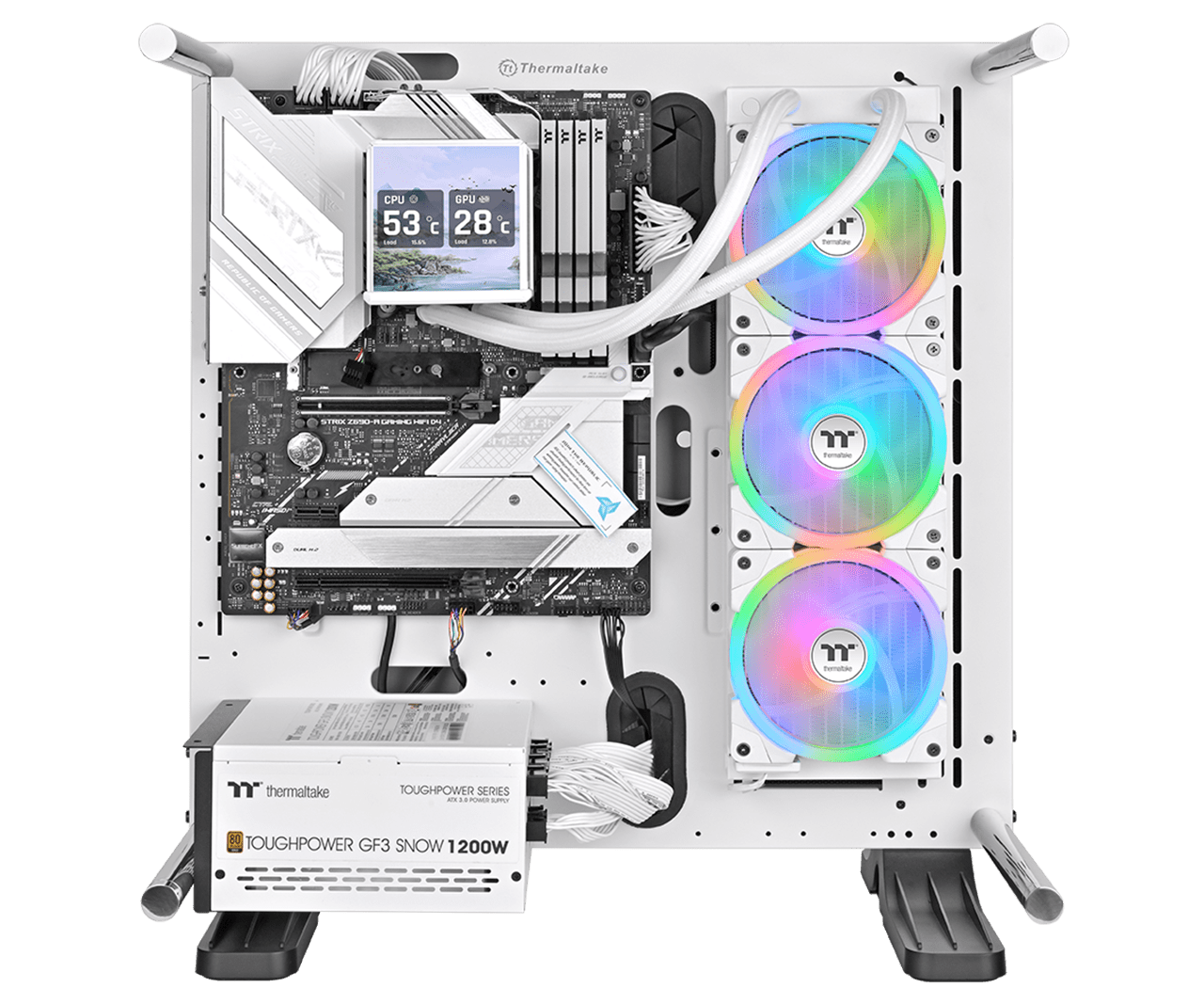

With the Swappable Fan Blade Design, the MINECUBE Ultra ARGB Sync AIO Liquid Cooler Snow Edition incorporates three standard blades and reversed blades, effortlessly switching between the airflow direction for intake or exhaust while fully showing lighting effects. No more sacrificing aesthetics for your airflow direction!

Standard Blade
Ordinary Fans

Reverse Blade
Ordinary Fans

Swap the Fan Blades as You Like

Simply pop out the fan blades, switch up the blades and press them back in!

The Ultimate Cooling Performance of an ARGB Fan

To achieve optimal cooling efficiency for high-performance systems, the SWAFAN EX12 White has a maximum operating speed of 2000 RPM.

Click to see different airflow directions:

Reverse Fan Blades can provide an static pressure of 2.02 mm-H2O (Max) and 56.26 CFM (Max) airflow while maintaining under 32.5 dB-A noise level and can bring air from the back to the front.

The Ultimate Cooling Performance of an ARGB Fan

To achieve optimal cooling efficiency for high-performance systems, the SWAFAN EX12 White has a maximum operating speed of 2000 RPM.

Click to see different airflow directions:

Standard Fan Blades can provide an static pressure of 2.39 mm-H2O (Max) and 57.11 CFM (Max) airflow while maintaining under 30.6 dB-A noise level and can bring air from the front to the back.

Steady Connection with MagForce 2.0

The SWAFAN EX White fans included in MINECUBE Ultra ARGB Sync Snow Edition are upgraded to the MagForce 2.0 connector, whose Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment, whether you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

Caution: Due to safety and motherboard software signal limitations, SWAFAN EX ARGB is only recommended to daisy-chain maximum 5 fans per cable.

Say Goodbye to Excessive Cables

Connect your fans with SWAFAN EX’s MagForce 2.0 Quick Connect Design and be free from messy cables!

Ordinary Fans

SWAFAN EX ARGB Sync Fans

Enhanced Cooling Surface With A Compact Design

The MINECUBE Ultra ARGB Sync series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

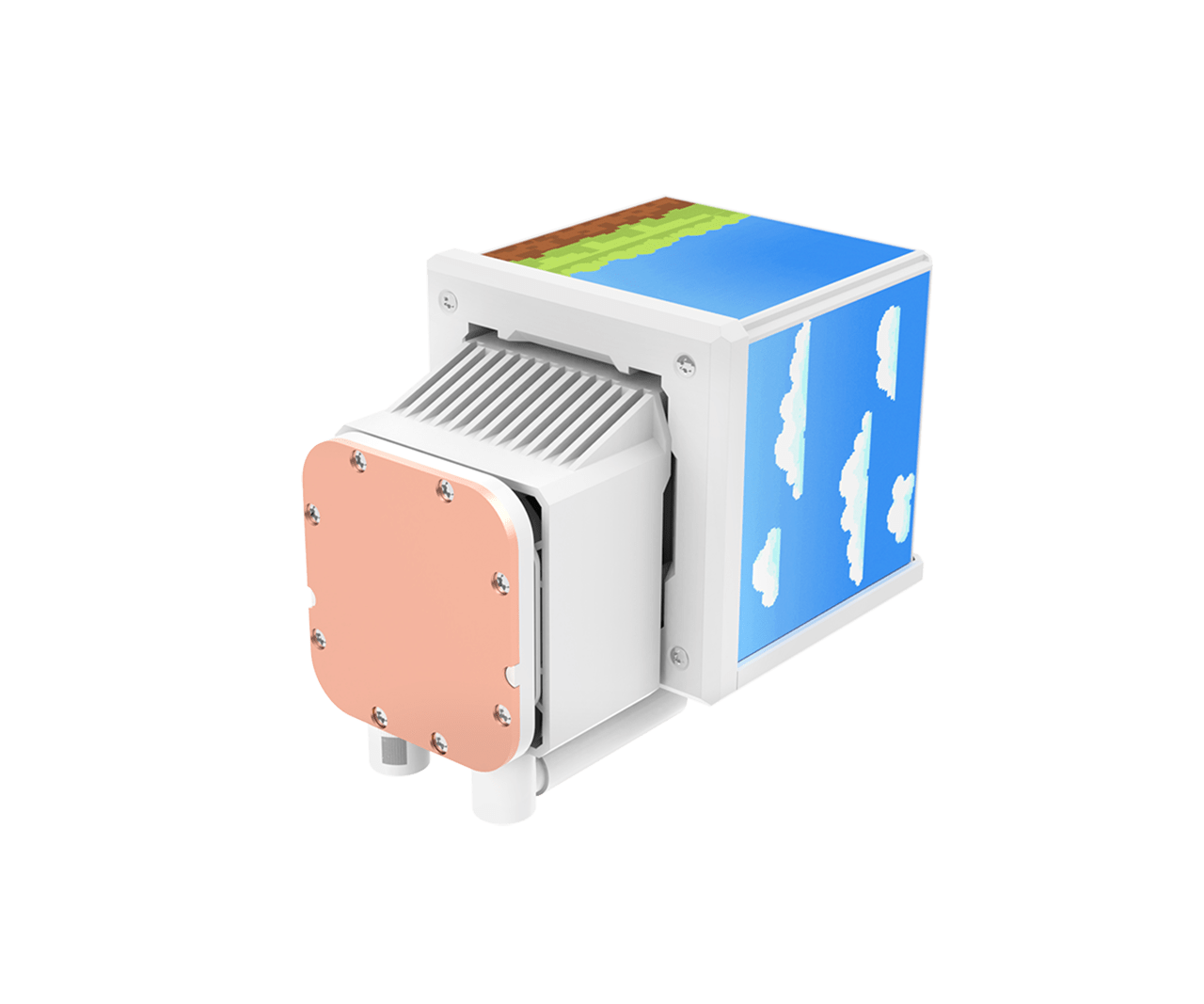

Efficient Cooling with Premium Pump & Copper Base

The high-quality and reliable pump enables maximum water circulation, keeping the copper plate consistently cool. Combined with a high-performance copper base plate, this design accelerates thermal conductivity and rapidly transfers heat away from your CPU. It is engineered for effective and long-lasting cooling performance.

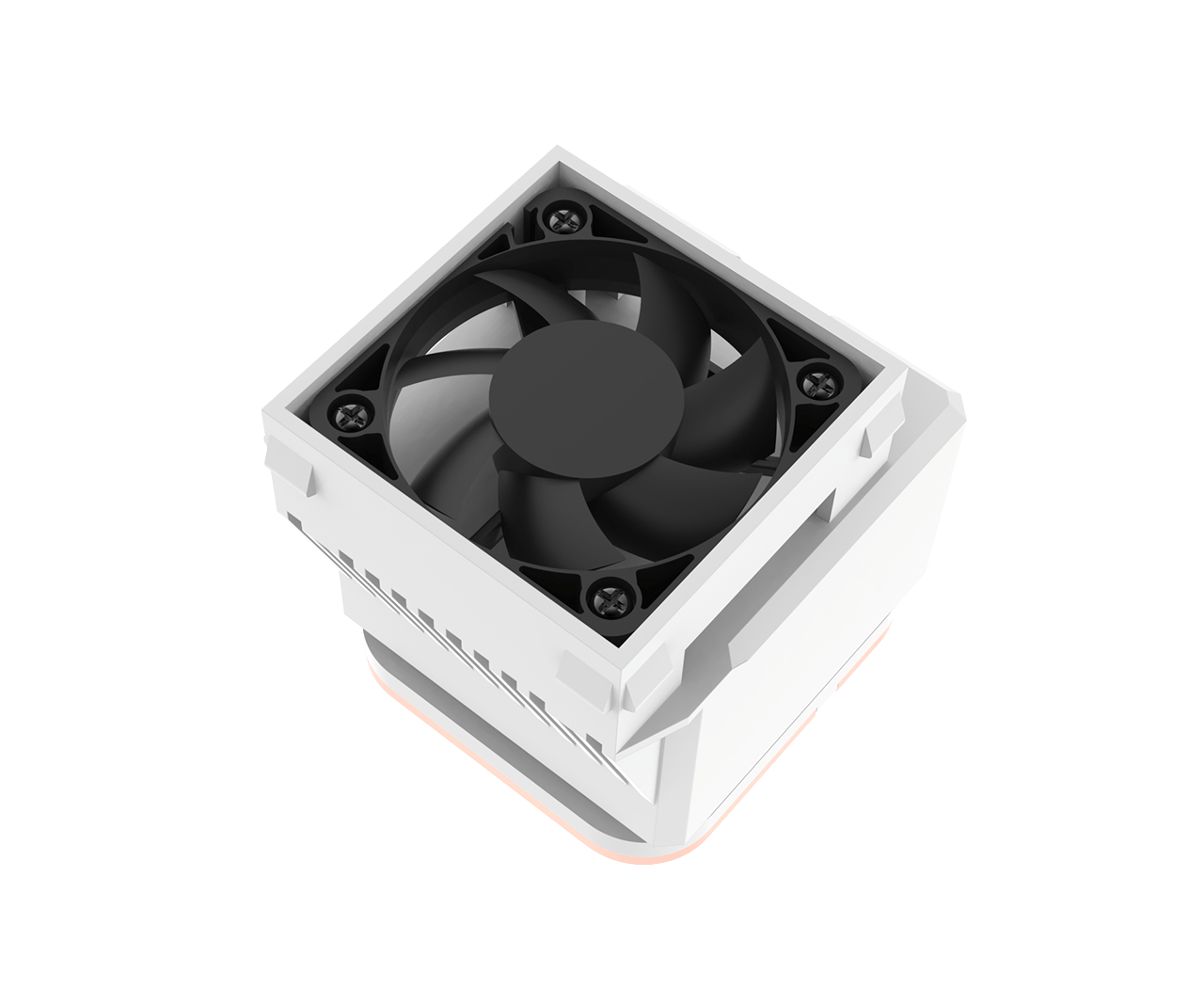

Optimal VRM Fan for Thermal Management

The water block features a built-in VRM Fan with a speed of up to 3500 RPM, ensuring efficient heat dissipation for the surrounding VRM module, motherboard, and the LCD displays. This design prevents overheating, maintaining stable operation while protecting both the internal hardware and the vivid multi-screen visuals.

Cleaning Fans are now Easy and Fun!

Pop and insert, it is that easy.

If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply the bearing lubricant that is included in the package if needed.

TT LCD Screen Software

Thermaltake launches dedicated software for MINECUBE 360 Ultra, allowing full customization of the screen. Choose your preferred background and display your favorite real-time system stats or personal information with ease.

Download Software Download User Manual

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Aura Addressable Header
ASUS
Digital Pin Header
GIGABYTE
JRAINBOW Header
MSI
Addressable RGB LED Header
ASRock

Category	Caution
Chassis, ARGB Fan, ARGB AIO	The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate	This product can only be used with either the TT RGB PLUS software or the dedicated Motherboard software. Running both may cause conflicts. The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.

More Information
P/N	CL-W482-PL12SW-A
Pump	Motor Speed : PWM 1500~3300 RPM Rated Voltage : 12V Rated Current : 0.43A Power Input : 5.16W
Pump Fan	Fan Speed: 3500 RPM Rated Voltage: 12V Rated Current: 0.06A Power Input: 0.72W Noise Level: 20 dB-A Air Flow: 6.8 CFM Static Pressure: 1.5 mm-H2O
CPU Display	Rated Voltage : 5V Rated Current : 1.2A Power Input : 6W Display Type : 3.95” TFT-LCD x 4 Display Resolution : 720x720 (RGB) px
Display Support	Interface : Micro USB to USB (9PIN) System Compatibility : Windows 10 / 11
Water Block	Material : Copper
Fan	Dimension : 120 x 120 x 25 mm Fan Speed : PWM 500~2000 R.P.M Rated Voltage : 12V/5V Rated Current : 0.27 A & 0.72 A (one fan) Power Input : 3.24 W & 3.6 W (one fan) Air Flow : Standard Fan Blade : 57.11 CFM (one fan) Air Flow : Reverse Fan Blade : 56.26 CFM (one fan) Static Pressure : Standard Fan Blade : 2.39 mm-H2O (one fan) Static Pressure : Reverse Fan Blade : 2.02 mm-H2O (one fan) Noise Level : Standard Fan Blade : 30.6 dB-A (one fan) Noise Level : Reverse Fan Blade : 32.5 dB-A (one fan)
Tube	Length : 460mm Material : Rubber
Radiator	Dimension : 396 x 120 x 27 mm Material : Aluminum
Compatibility	CPU Socket : Intel LGA 2066/2011-3/2011/1851/1700/1200/1156/1155/1151/1150 AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
TDP	360W
