Single Tower Design
TOUGHAIR 310 is a single tower designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 170W.
Enhanced 120 mm high static pressure Fan
TOUGHAIR series utilizes high static pressure fans, which
leverages the TOUGHFAN 12
design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to
our CPU cooler.

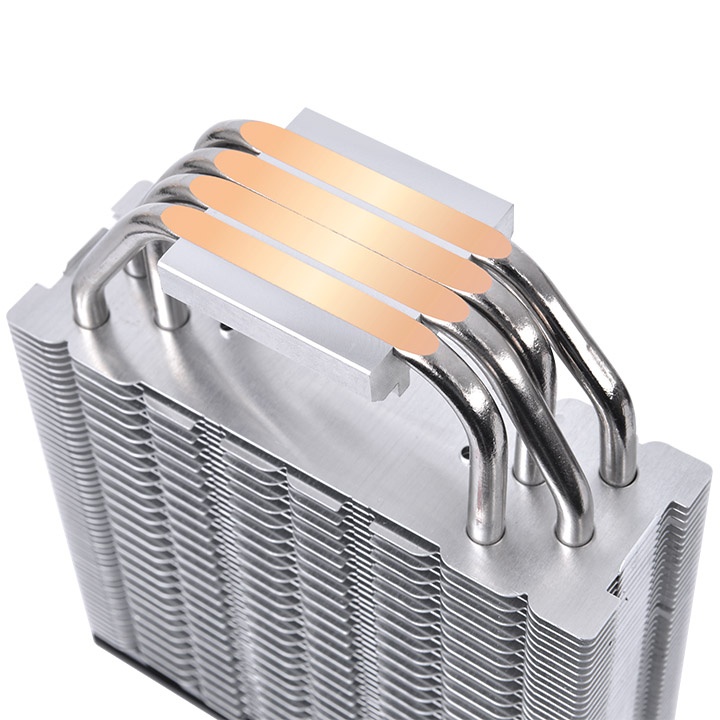

High-Performance U-shape copper heat pipes
4 x Ø6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.
Universal Compatibility
TOUGHAIR Series are designed to fit Intel and AMD sockets including
the following
models:
Intel:
LGA 1851/1700/1200/1156/1155/1151/1150
AMD:
AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
| P/N | CL-P074-AL12BL-A |
|---|---|
| Compatibility | Intel: LGA 1851/1700/1200/1156/1155/1151/1150 AMD: AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
| Dimensions | 123.6 x 71.7 x 159.5 mm ( L x W x H) |
| Heatsink Material | Aluminum Fins Copper Heatpipes |
| Heatpipe | Φ6mm x 4 pcs |
| Fan Dimension | 120 x 120 x 25 mm ( L x W x H) |
| Fan quantity | 1pcs |
| Fan Speed | PWM 500 ~ 2000 RPM |
| Rated Voltage | 12V |
| Start Voltage | 6.0 V |
| Rated Current | 0.48 A |
| Power Input | 5.76 W |
| Air Flow | 58.35 CFM |
| Static Pressure | 2.41 mm-H2O |
| Acoustical Noise | 23.6 dBA |
| Life time/Fan Life time | 40,000 hours |
| pin connect | 2510 - 4Pin |
| Cooling Power | 170 W |
