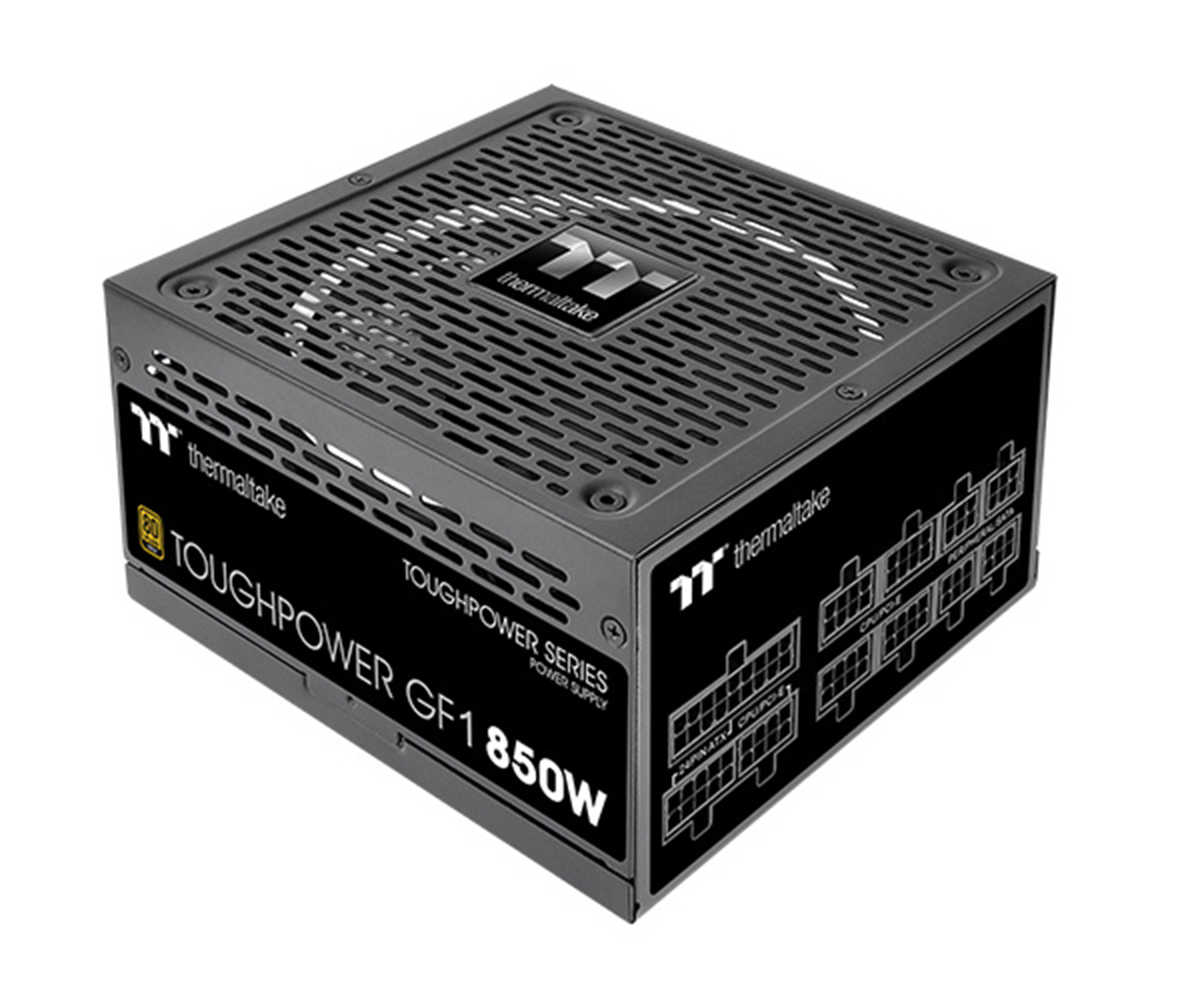

Toughpower GF1 850W - TT Premium Edition
The fully modular Toughpower GF1 series is available
in 650W - 850W models
and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic
bearing fan, Japanese
capacitors and other premium components to help deliver a continuous and stable power
with an ambient
temperature up to 50°C, while near silent operation and reliable performance are
guaranteed. With an ample
10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts
are looking for a
premium power supply with all the latest features.
※The photo is for reference.
-

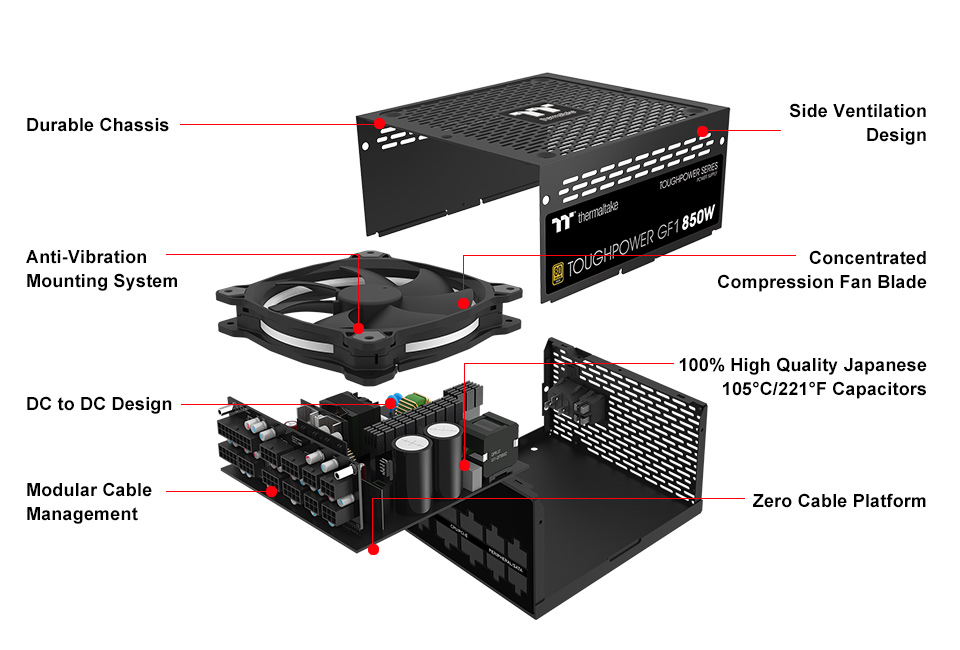

Durable Chassis
-
Anti-Vibration Mounting System
-

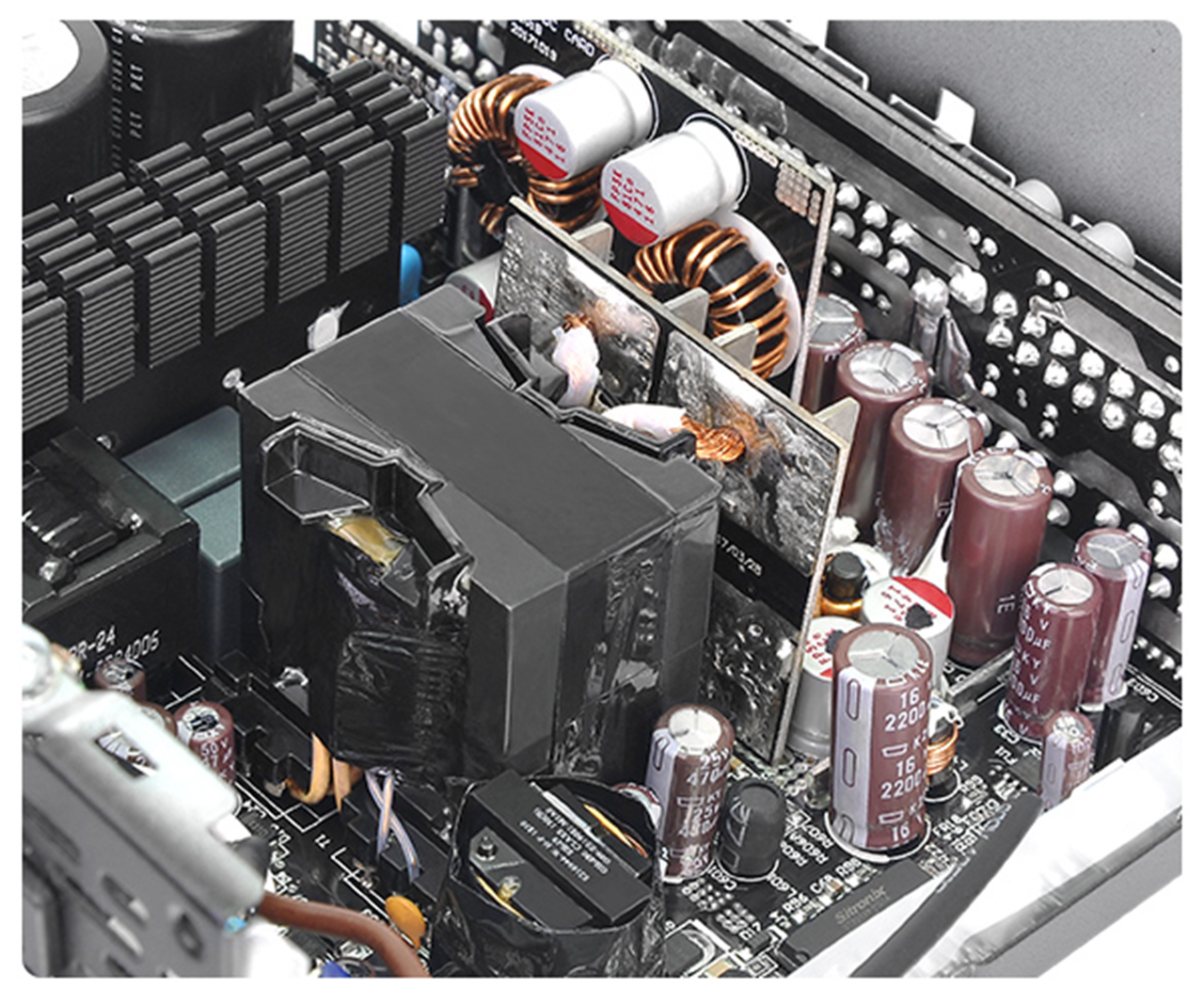

DC to DC Design
-
Modular Cable Management
-
Side Ventilation Design
-
Concentrated Compression Fan Blade
-
100% High Quality Japanese 105°C / 221°F Capacitors
-
Zero Cable Platform
Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.
Ultra Quiet 140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan with
intelligent RPM
controls to help
guarantee superior cooling performance and near silent operation.
Smart Zero Fan
<30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V
from
0% to 100% load to
ensure a stable operation and keep your performance-critical components to function
reliably for longer.
Intel Specification
Toughpower GF1 Series
Extremely Strict Voltage Regulation <±2%
The voltage regulation, more strict than Intel’s
standard
±5% for major rails and
±10% for -12V, is set to no more than ±2% for major rails to meet the highest
performance.
Intel Specification
Toughpower GF1 Series

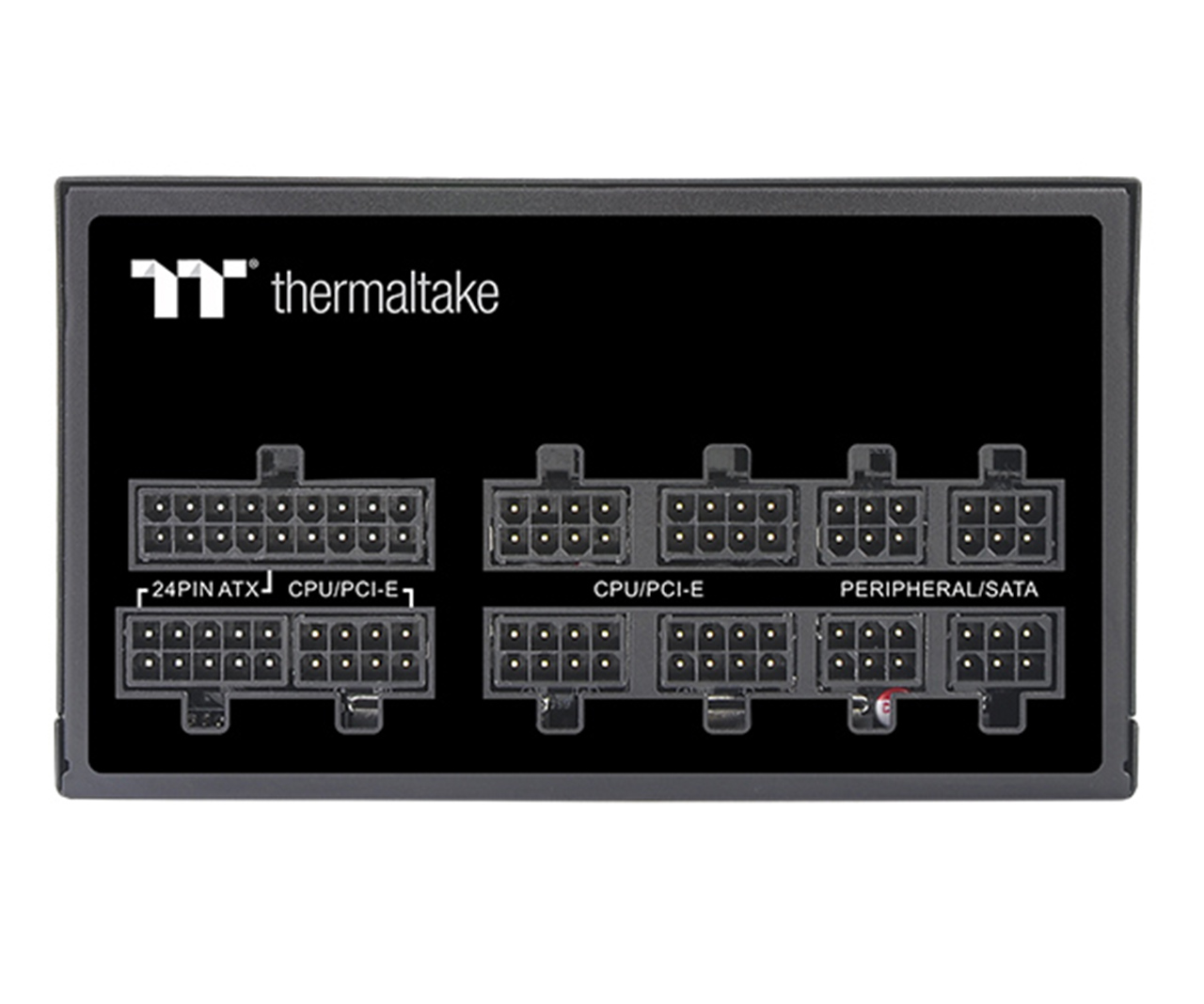

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the
system
at an advantageous
voltage. Low-profile flat black cable makes cable management easier, reduces clutter and
increases airflow
inside the chassis.
Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the
highest
stability, while
remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable
supply to other PC
components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
P/N | PS-TPD-0850FNFAGG-1 PS-TPD-0850FNFAGU-1 |
---|---|
watts | 850W |
Factor de Forma | ATX |
Model | TTP-850AH3FCG |
Max. Output Capacity | 850W |
Peak Output Capacity | 1020W |
Color | Black |
Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-500 msec |
Hold Up Time | > 16msec at 100% of full load |
Input Current | 12A |
Input Frequency Range | 50Hz - 60Hz |
Input Voltage | 100V – 240V~ |
Operating Temperature | 0°C to + 50°C |
Operating Humidity | 20% to 90%,non-condensing |
Storage Temperature | -20°C to + 70°C |
Storage Humidity | 5% to 95%, non-condensing |
Cooling System | 14cm hydraulic bearing fan |
Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
MTBF | 120,000 hrs minimum |
Safety Approval | CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC |
PCI-E 6+2pin | 6 |
Protection | OCP, OVP, UVP, OPP, SCP, OTP |
