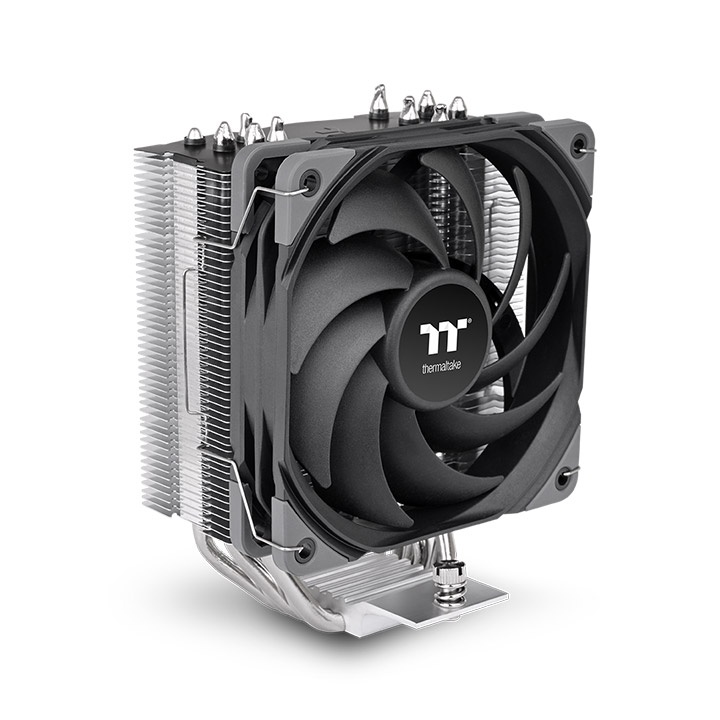

UX500 CPU Cooler
Efficient Air Cooling Solution

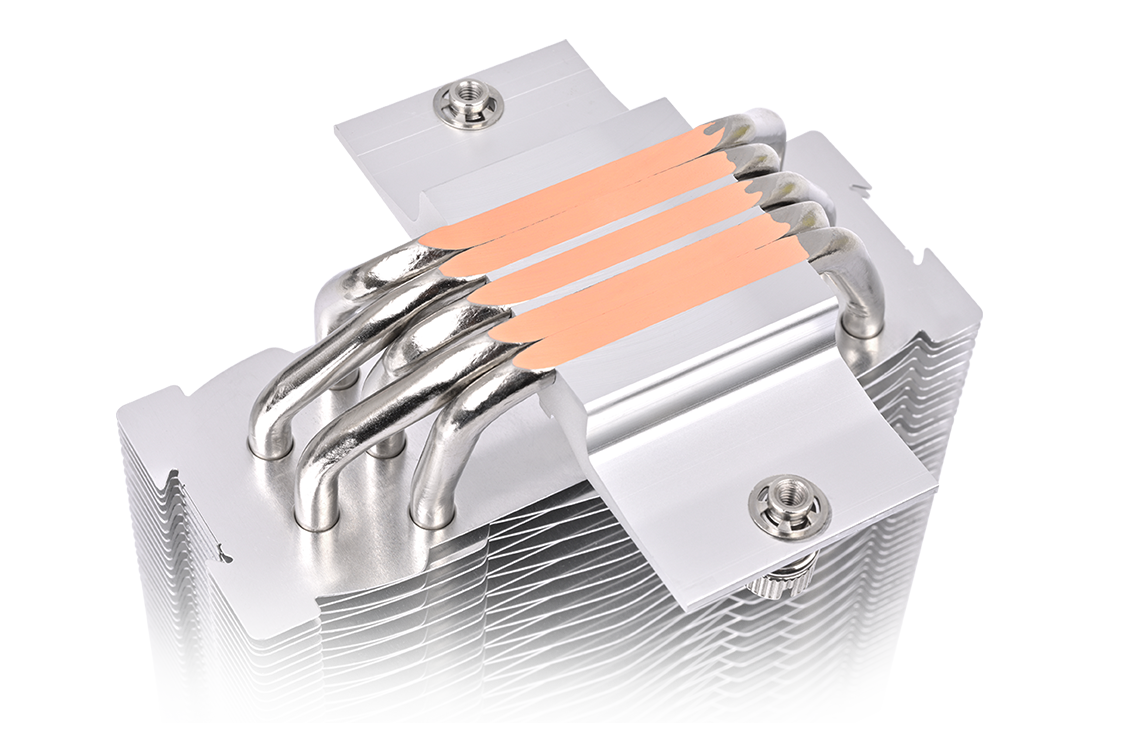

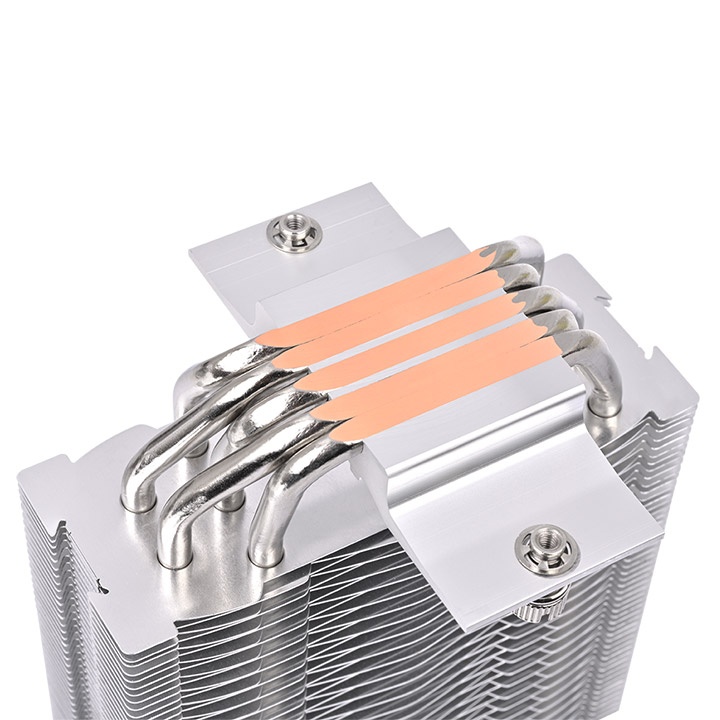

The UX500 features five Ø6mm U-shaped copper heat pipes in direct contact with the CPU for fast and reliable heat transfer. Its single-tower design, made with high-quality aluminum fins, ensures optimal heat dissipation, keeping your system cool and stable.

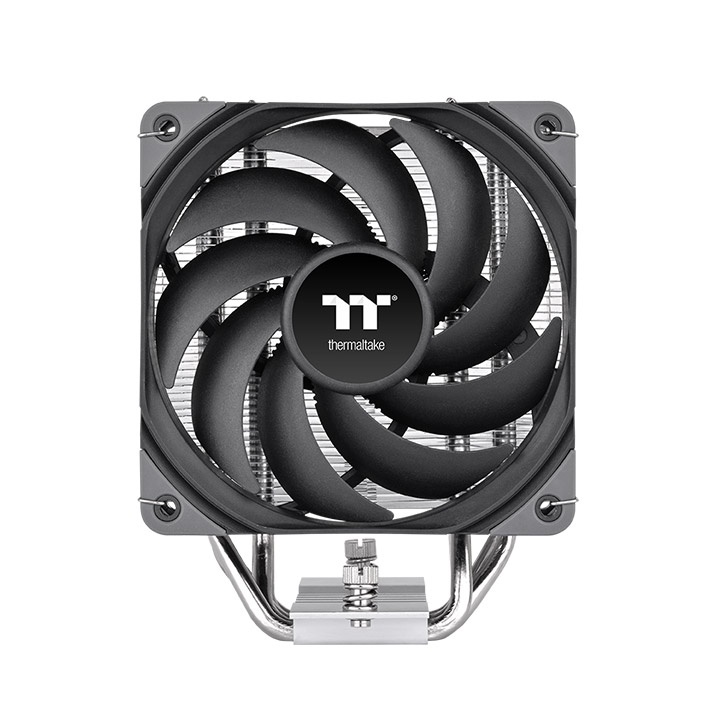

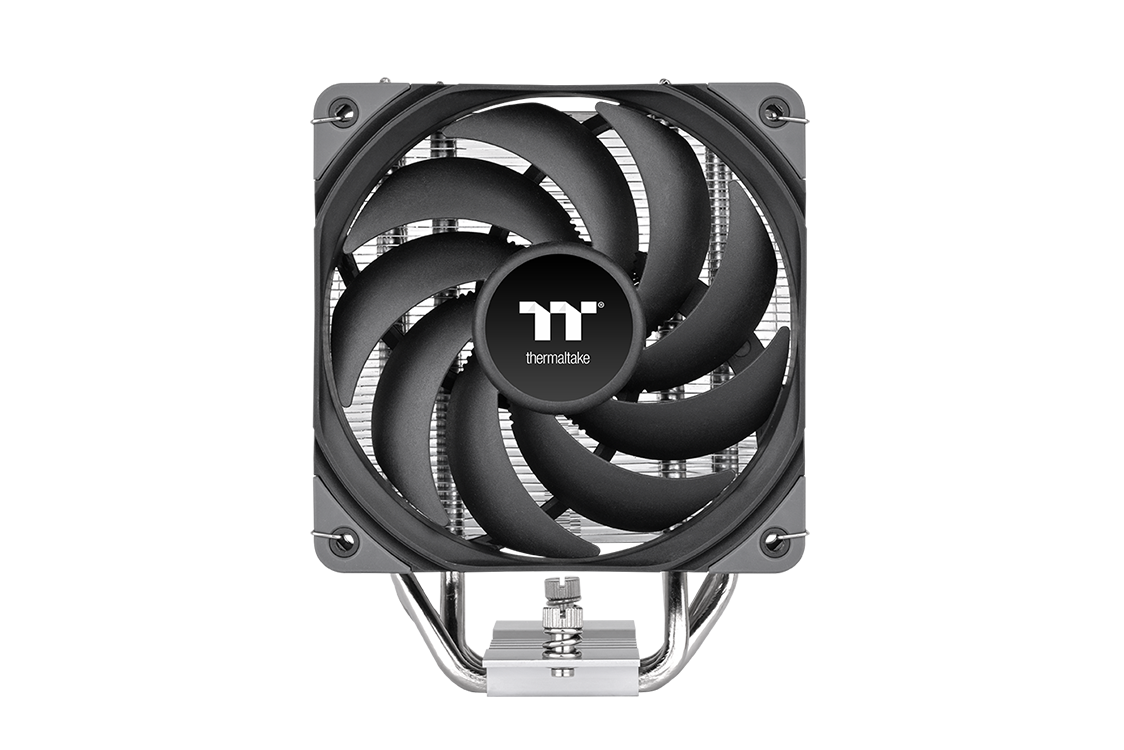

High Volume Airflow Design
The 120mm high airflow fan provides an airflow of 62.72 CFM and a static pressure of 1.47 mm-H2O, while maintaining a noise level of 25.0 dB-A. It enables a large volume of air to pass through the heat sink, offering exceptional cooling performance.
Reliable Hydraulic Bearing
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance that lowers operation noise and enhance thermal efficiency. The seal cap prevents leakage of the lubricant and extends the lifespan of the unit.

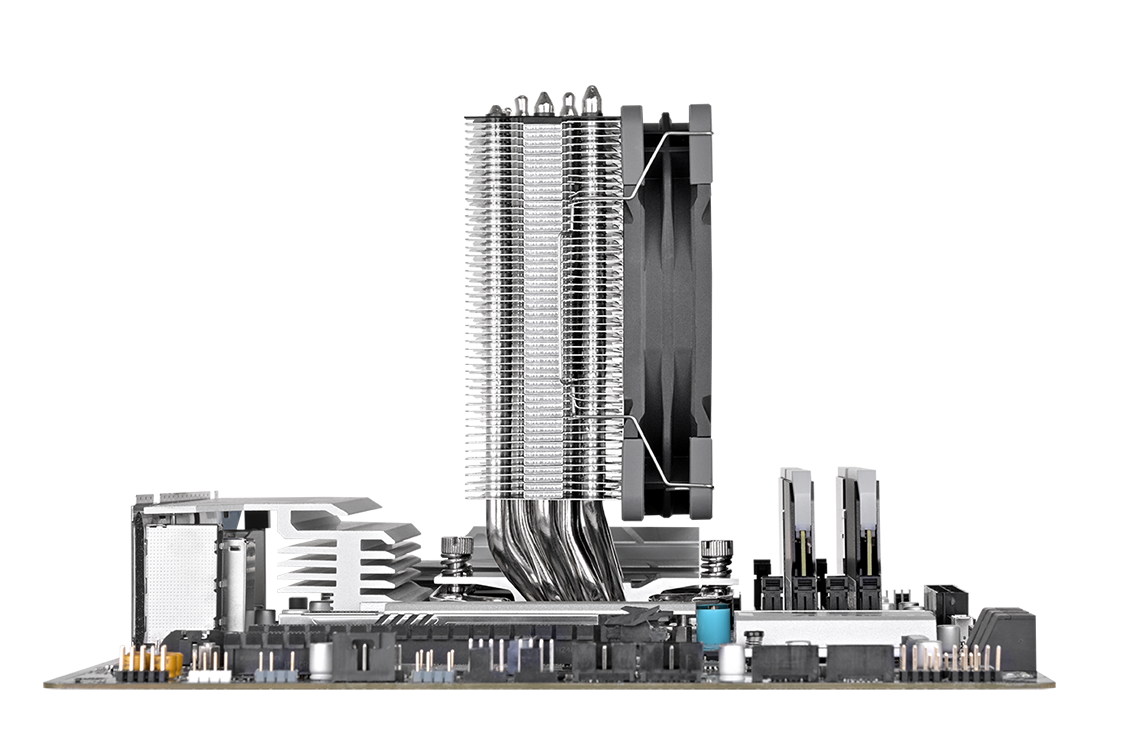

Flexible Choice of Pairing Components

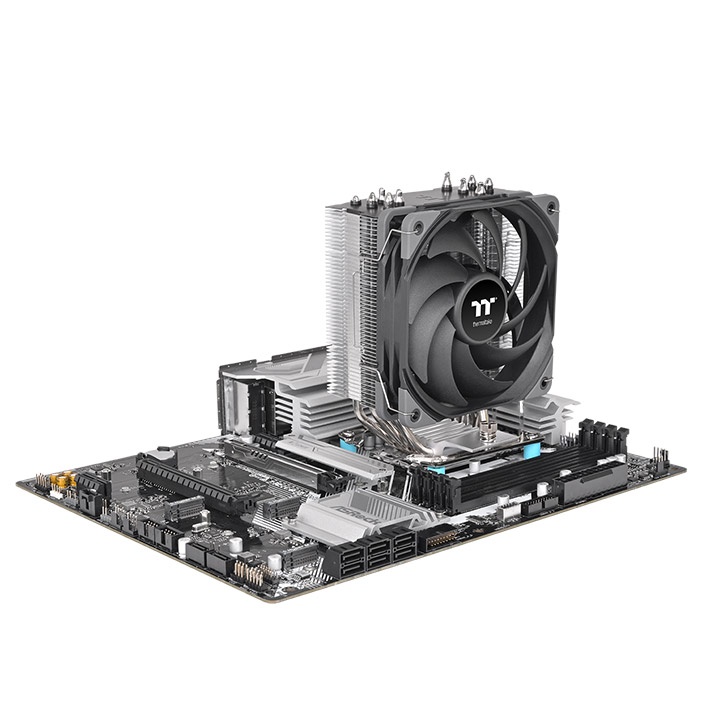

The UX500 heat pipes and fin stack construction were designed for exceptional RAM compatibility, enabling you to pair with the RAM of your choice.
Universal Socket Compatibility
The UX500 comes with universal brackets for Intel and AMD CPUs, including the latest LGA1851 and AM5 CPU sockets.
Intel: LGA 1851/1700/1200/1156/1155/1151/1150
AMD: AM5/AM4/FM2/FM1/AM3+/AM3/AM2+/AM2
| P/N | CL-P150-AL12BL-A |
|---|---|
| Compatibility | Intel LGA 1851/1700/1200/1156/1155/1151/1150 AMD AM5/AM4/FM2/FM1/AM3+/AM3/AM2+/AM2 (CPU Socket) |
| Heatsink Dimension | 125 x 92 x 158 mm ( L x W x H) |
| Heatsink Material | Aluminum Fins Copper Heatpipes |
| Heatpipe | Φ6mm x 5 pcs |
| Fan Dimension | 120 x 120 x 25 mm ( L x W x H) |
| Fan quantity | 1pcs |
| Fan Speed | PWM 700~1800 RPM |
| Rated Voltage | 12 V |
| Start Voltage | 6.0 V |
| Rated Current | 0.4 A |
| Power Input | 3.0 W |
| Air Flow | 62.72 CFM |
| Static Pressure | 1.47 mm-H2O |
| Noise | 25.0 dBA |
| Life time/Fan Life time | 30,000 hours |
| pin connect | 2510 - 4Pin |
| Cooling Power | 260 W |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
UX500 Manual
- 2025-04-15
