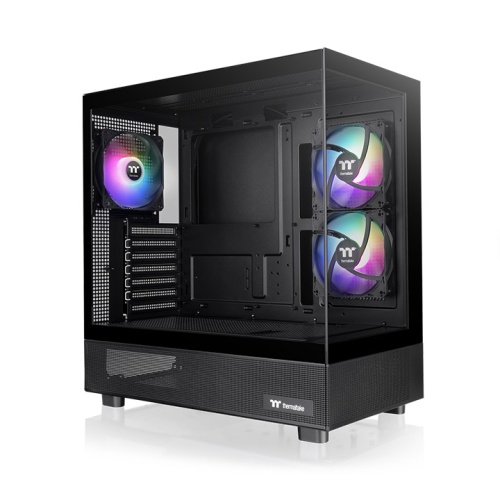

View 270 Plus TG ARGB C+P (750W) Mid Tower Chassis
Built for amazing viewing, the View 270 Plus TG ARGB Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed in the chassis, and up to a 360mm radiator can be placed on the top of the View 270 Plus TG ARGB Mid Tower Chassis.
- The image is for reference only.

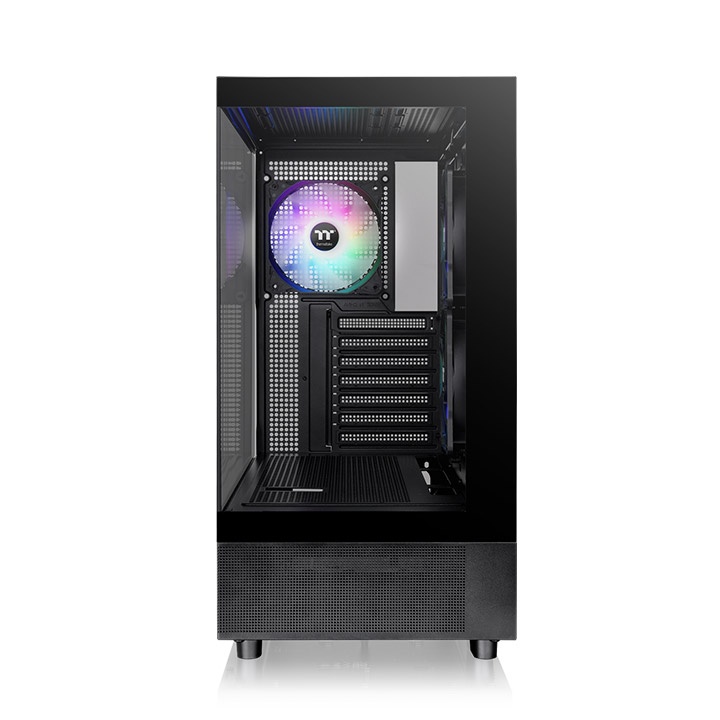

The View 270 Plus TG ARGB Mid Tower Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
- The image is for reference only.
Providing good cooling support, users can choose to place a 360mm radiator on the top of the View 270 Plus TG ARGB Mid Tower Chassis.

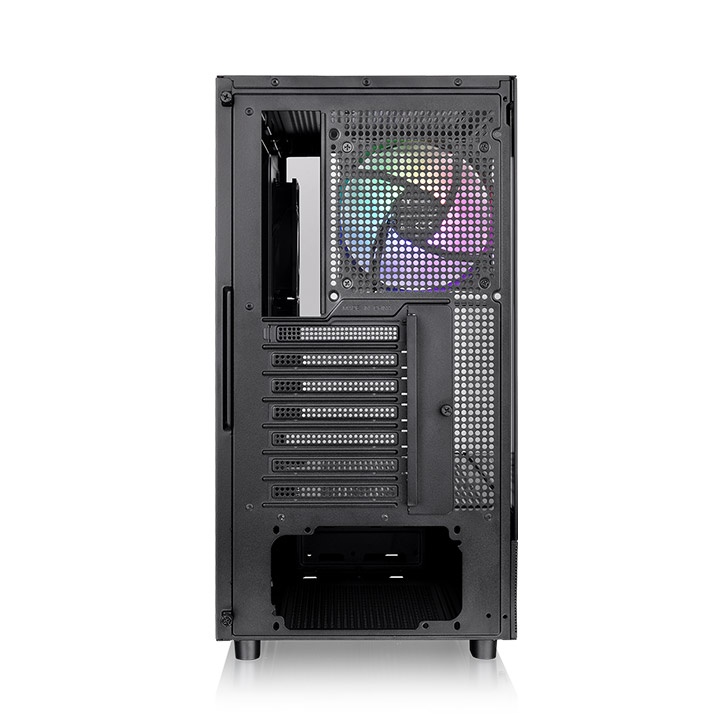

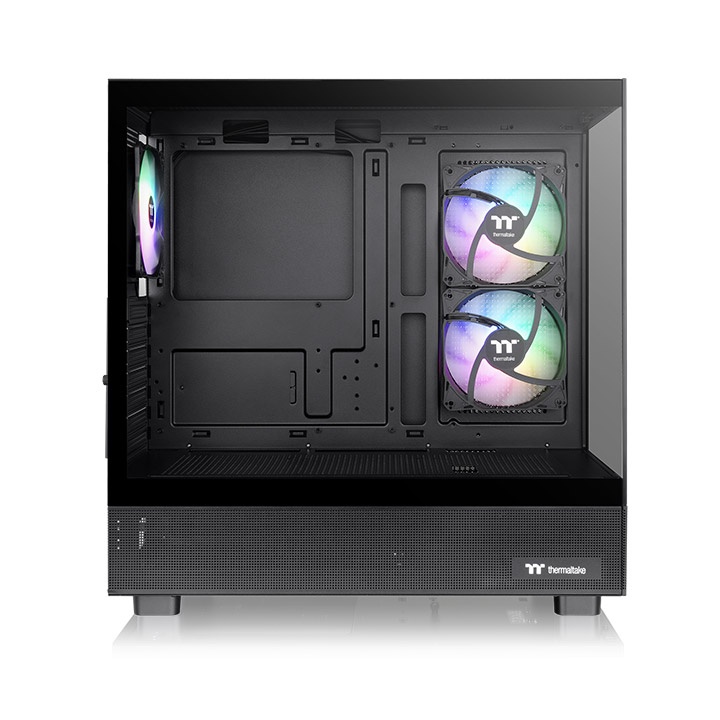

The View 270 Plus TG ARGB Mid Tower Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the motherboard side and the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
The View 270 Plus TG ARGB Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
| AC INPUT |
Input Voltage: 100-240V~
|
||||
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
| Max Output Current |
24A |
18A |
56A |
0.5A |
2.5A |
| Max Output Power |
100W |
672W |
6.0W |
12.5W |
|
| Total Power |
750W |
||||
- The image is for reference only.
Soft black cables come with sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) |
X 1 |
|
X 1 | 600mm |
| ATX 12V (4+4Pin) |
X 1 |
|
X 1 | 650mm |
| PCIe (6+2Pin) |
X 4 |
|
X 1 | 500mm+150mm |
| SATA (5Pin) |
X8 |
|
X 2 | 500mm+150mm+150mm |
| Peripheral (4Pin) |
X 1 |
|
X 4 | 500mm+150mm +150mm+150mm |
| FDD Adapter | X 1 |
|
X 1 | 150mm |
- The image is for reference only.
The View 270 Plus TG ARGB Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
- The image is for reference only.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
Two USB 3.0, one USB 2.0 and HD Audio ports are placed on the top panel to grant direct access when needed.
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | 420 Series | |
|---|---|---|---|---|---|---|
| Top | ● | ● | ● | - | - | - |
| Rear | ● | - | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Top | 3 | 2 | - |
| Rear | 1 | 1 | - |
| P/N | CA-3Y7-75M1WG-00 |
|---|
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
View 270 Plus TG ARGB C+P-750W Manual
- 2025-10-21
