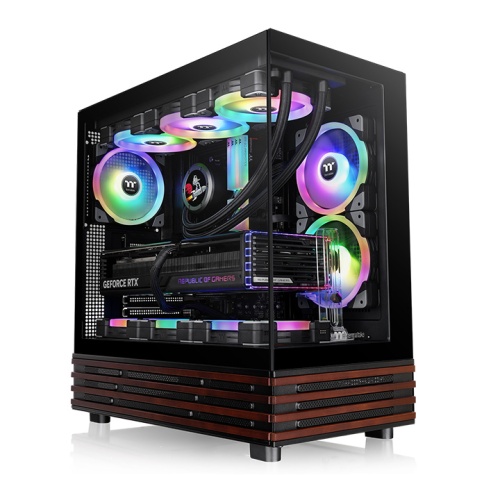

View 270 Plus WS ARGB Mid Tower Chassis
The View 270 Plus WS ARGB Mid Tower Chassis is an ATX case that features tempered glass front and left panels, accented with a stylish wood, and comes pre-installed with two 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed in the chassis, and up to a 360mm radiator can be placed on the top of the View 270 Plus WS ARGB Mid Snow Tower Chassis.
- The image is for reference only.
The View 270 Plus WS ARGB Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels framed with elegant wood, allowing users to enjoy their system with a stylish touch.
- The image is for reference only.

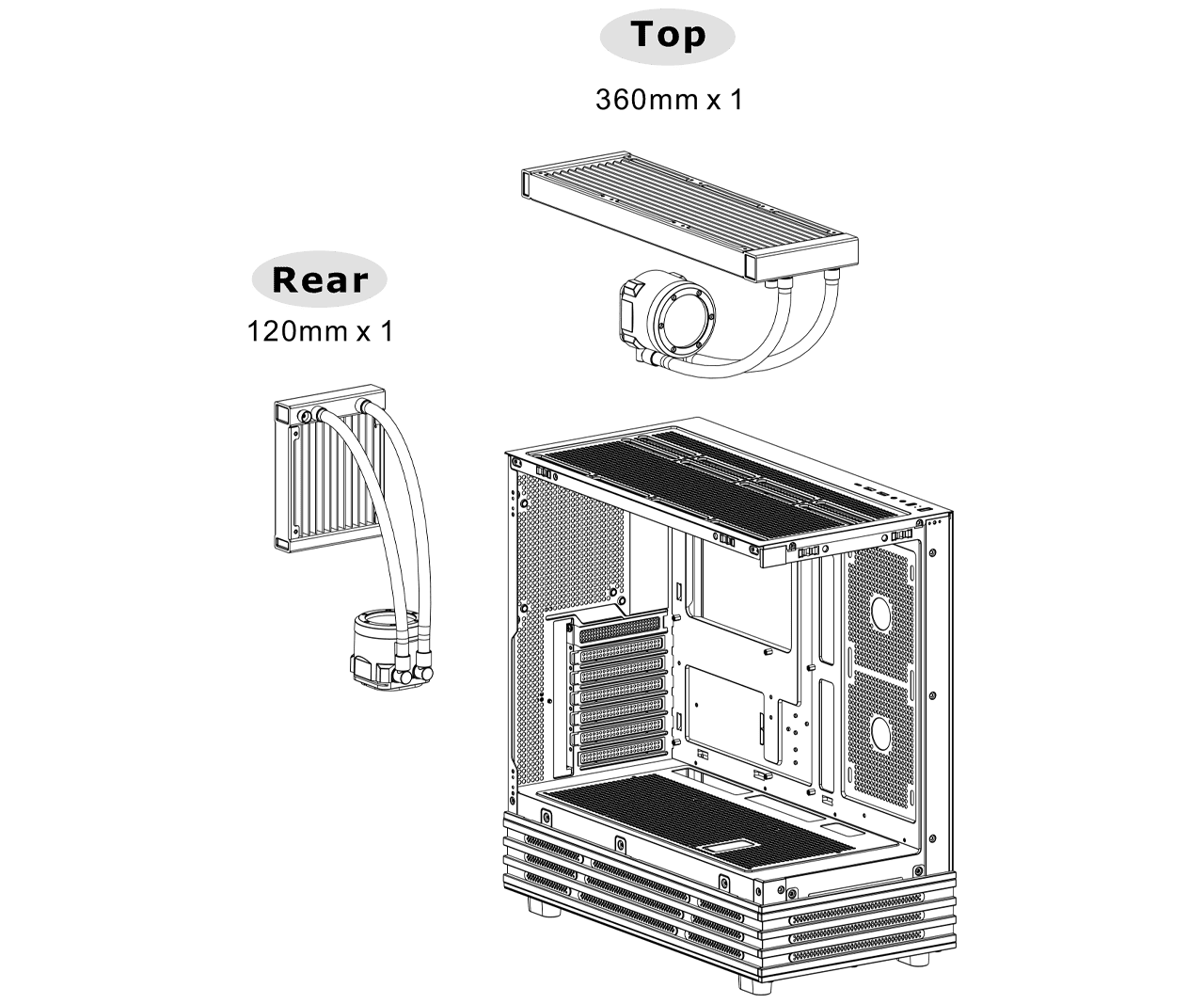

Providing good cooling support, users can choose to place a 360mm radiator on the top of The View 270 Plus WS ARGB.
- The image is for reference only.
The View 270 Plus WS ARGB Mid Tower Chassis features elegant wood and comes pre-installed with two 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear. Its captivating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
- The image is for reference only.

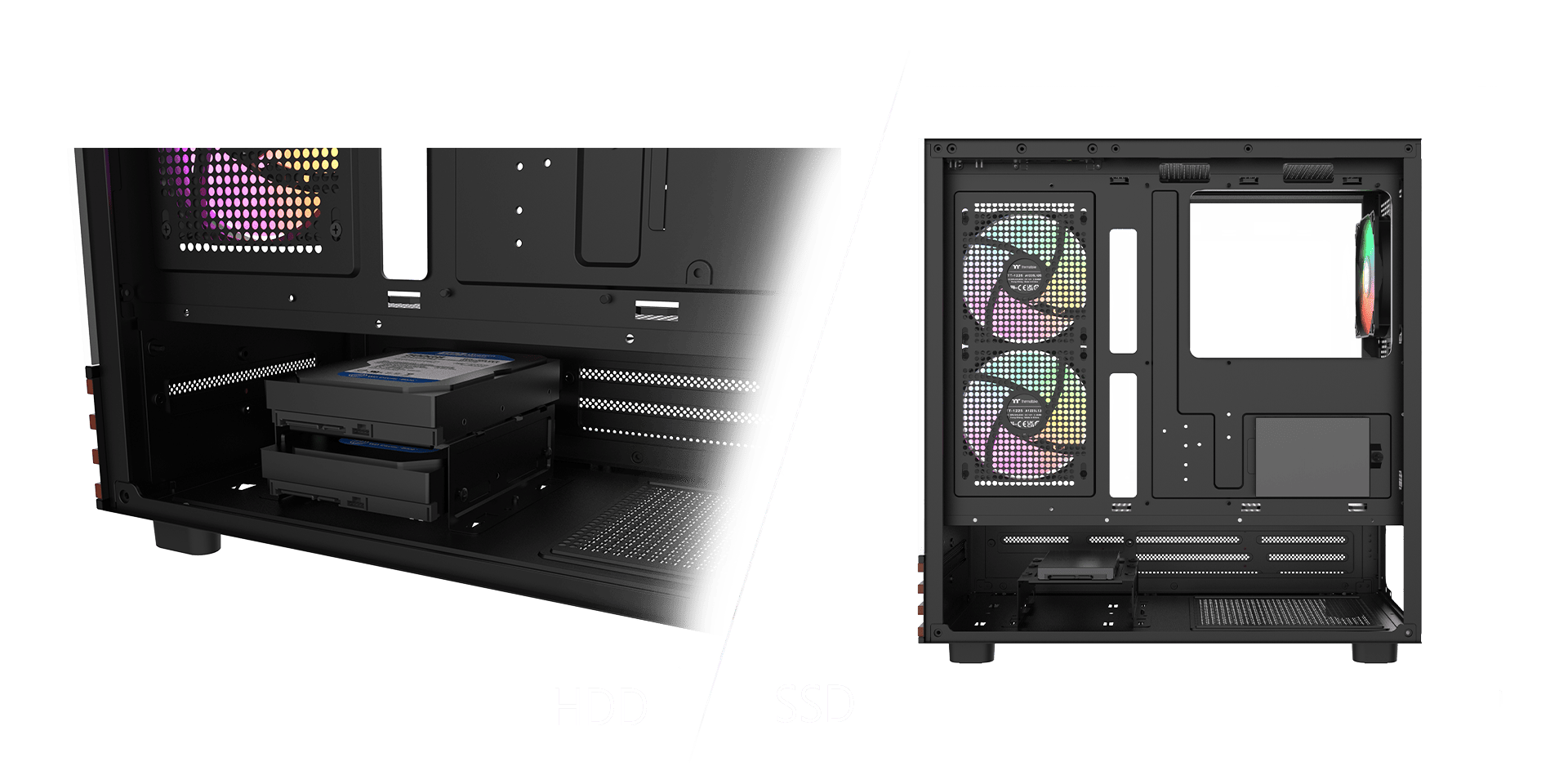

The View 270 Plus WS ARGB Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
- The image is for reference only.
- 120mm
- 140mm
- 120mm
- 240mm
- 360mm
- The image is for reference only.
- The image is for reference only.
Two USB 3.0, one USB 3.2 Gen 2 Type-C and HD Audio ports are placed on the top panel to grant direct access when needed.
- The image is for reference only.

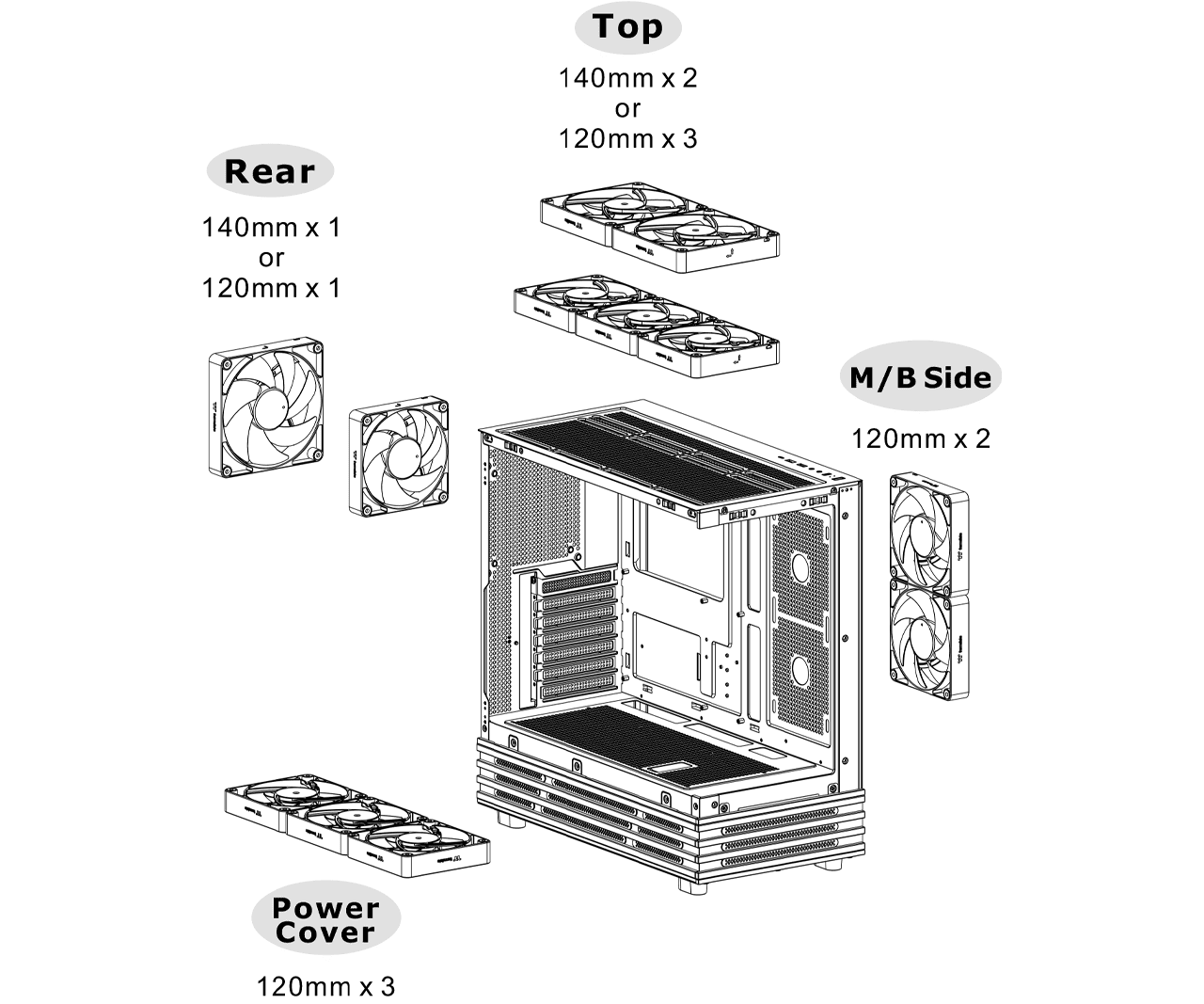

| 120 | 240 | 360 | 140 | 280 | 420 | |
|---|---|---|---|---|---|---|
| Top | ● | ● | ● | - | - | - |
| Rear | ● | - | - | - | - | - |
| 120 | 140 | 200 | |
|---|---|---|---|
| Top | 3 | 2 | - |
| Right (M/B Side) | 2 | - | - |
| Rear | 1 | 1 | - |
| Power Cover | 3 | - | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CA-1Y7-00M1WN-WS |
|---|---|
| Series | View |
| Model | View 270 Plus WS ARGB |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 456 x 230 x 454 mm (17.95x 9.1 x 17.9 inch) |
| Side Panel | Tempered Glass x 2 |
| Color | Black |
| Material | SPCC |
| Cooling System | Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Drive Bays -Accessible -Hidden |
2 x 3.5”, 1 x 2.5” or 2 x 2.5” |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
| Clearance | CPU cooler max height: 180mm VGA max length: 420mm PSU max length: 280 mm (HDD Cage at the front) PSU max length: 250 mm (HDD Cage at the back) |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
View 270 Plus WS ARGB Mid Tower Chassis_manual
- user manual
- 2025-09-04
