  • View 270 Plus WS ARGB Snow Mid Tower Chassis
View 270 Plus WS ARGB Snow Mid Tower Chassis View 270 Plus WS ARGB Snow Mid Tower Chassis View 270 Plus WS ARGB Snow Mid Tower Chassis View 270 Plus WS ARGB Snow Mid Tower Chassis View 270 Plus WS ARGB Snow Mid Tower Chassis View 270 Plus WS ARGB Snow Mid Tower Chassis
View 270 Plus WS ARGB Snow Mid Tower Chassis

View 270 Plus WS ARGB Snow Mid Tower Chassis

Out of stock
P/N
CA-1Y7-00M6WN-WS
USD$99,99

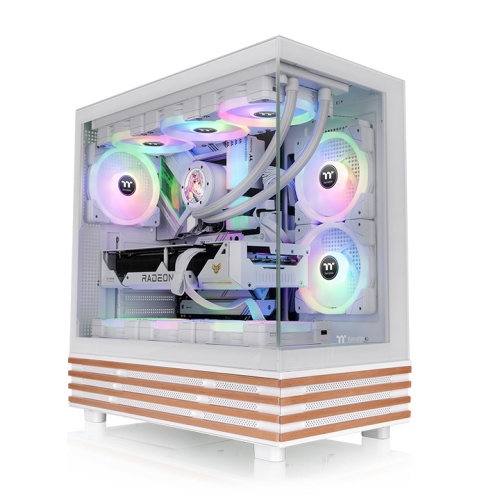

Built for amazing views, the View 270 Plus WS ARGB Snow Mid Tower Chassis is an ATX case that features tempered glass front and left panels, accented with a stylish wood, and comes pre-installed with two 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear.

  • The image is for reference only.
    •

  • The image is for reference only.
    •

  •

  • The image is for reference only.
    •

  • The image is for reference only.
    •
Opportunities For High-End Expansion
The View 270 Plus WS ARGB Snow Mid Tower Chassisoffers good expandability. It can support a CPU cooler with a maximum height of 180mm, VGA placement up to 420mm in length, a power supply up to 220mm in length. Optimized for excellent cooling performance, the case comes pre-installed with two 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear. For radiator compatibility, it can support up to 360mm on top, giving more options for high-end expansion!
  • 120mm
  • 140mm
  • 120mm
  • 240mm
  • 360mm

  • The image is for reference only.
    •
How Much Storage Is Totally Up To You

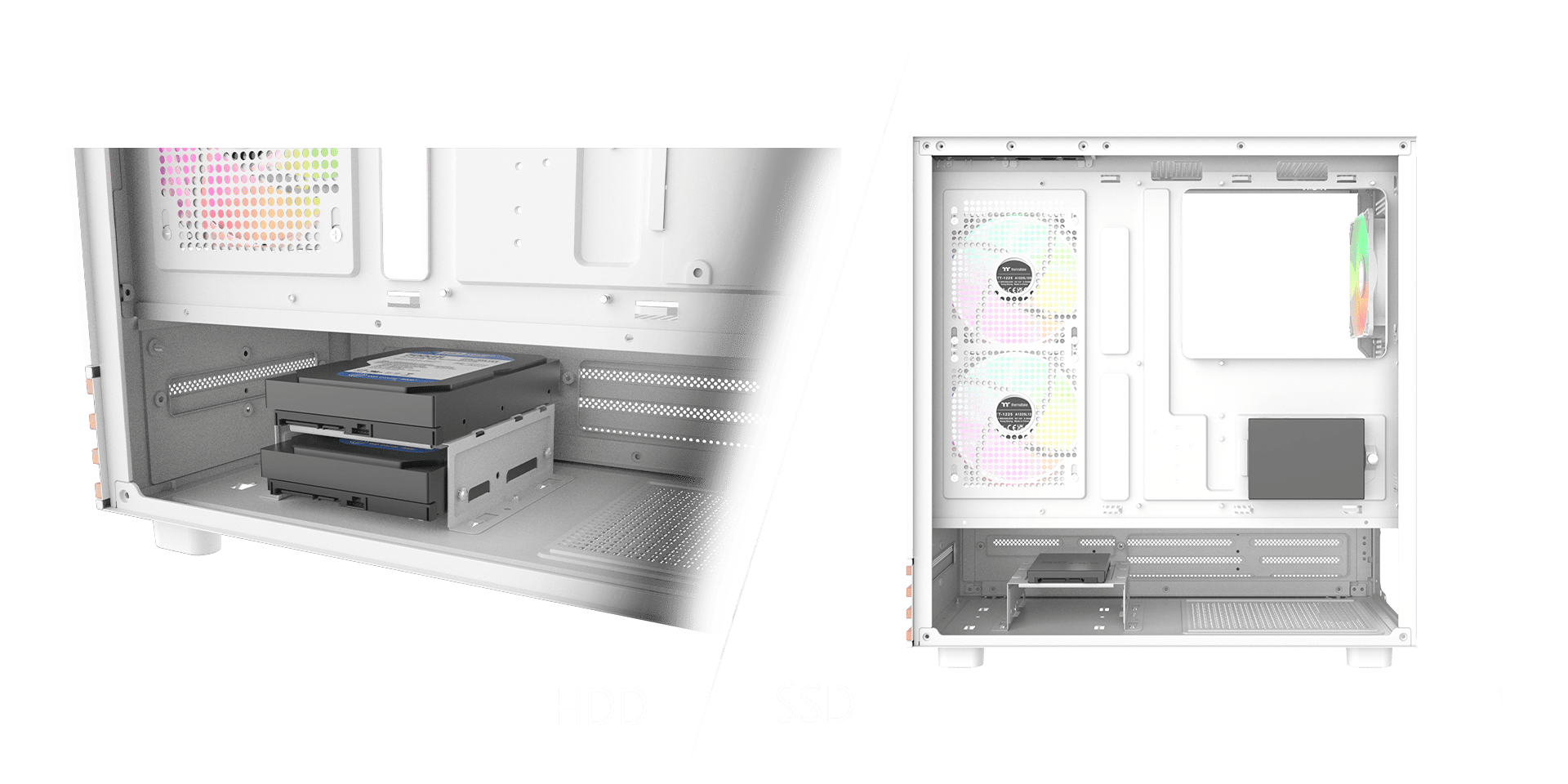

For storage compatibility, The View 270 Plus WS ARGB Snow Mid Tower Chassisgives maximum support of up to two 2.5‘’ SSDs or two 3.5‘’ HDDs in total.

  • The image is for reference only.
    •

  • The image is for reference only.
    •





Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated Motherboard software. Running both may cause conflicts.
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
More Information
P/N CA-1Y7-00M6WN-WS
Series View
Model View 270 Plus WS ARGB
Case Type Mid Tower
Dimension (H x W x D) 456 x 230 x 454 mm
(17.95x 9.1 x 17.9 inch)
Side Panel Tempered Glass x 2
Color Snow
Material SPCC
Cooling System Right(intake):
120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 2

Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays
-Accessible
-Hidden		 2 x 3.5”, 1 x 2.5” or 2 x 2.5”
Expansion Slots 7
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Right (M/B Side):
2 x 120mm, 1 x 120mm

Rear:
1 x 120mm, 1 x 140mm

Power Cover:
3 x 120mm, 2 x 120mm, 1 x 120mm
Radiator Support Top:
1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:
1 x 120mm
Clearance CPU cooler max height:
180mm

VGA max length:
420mm

PSU max length:
280 mm (HDD Cage at the front)

PSU max length:
250 mm (HDD Cage at the back)
