View 31 Tempered Glass Edition View 31 Tempered Glass Edition View 31 Tempered Glass Edition View 31 Tempered Glass Edition View 31 Tempered Glass Edition View 31 Tempered Glass Edition View 31 Tempered Glass Edition

View 31 Tempered Glass Edition

In stock
P/N
CA-1H8-00M1WN-00
USD$109,99
Mid-tower case with two preinstalled 140mm fans, supporting up to ATX MB.

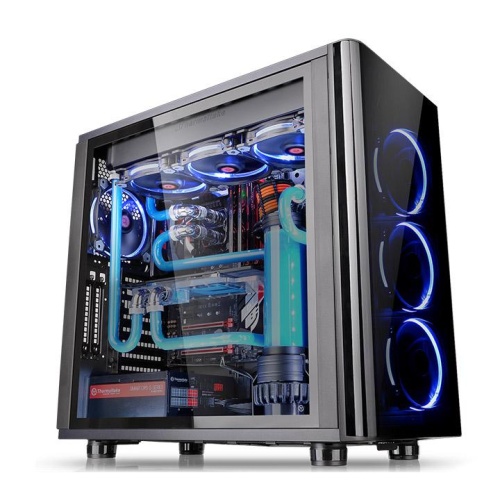

Thermaltake View 31 Tempered Glass Edition Mid Tower Chassis

The View 31 Tempered Glass Edition mid tower chassis features dual durable 4mm thick tempered glass window, riser GPU support bracket with optional PCI-e riser cable, two preinstalled 140mm Riing Blue fans with removable filters, and outstanding system ventilation. The View 31 TG supports the latest PC hardware and all high-end GPU solutions, guarantees on unparalleled expandability for high-end configurations and liquid cooling system to satisfy the market where users have opted for stylish PC chassis with advanced features and aesthetic appeal.

Tt LCS Certified

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Left and Right 4 mm Thick Tempered Glass Window Design

View 31 TG with left and right 4 mm thick tempered glass window guarantees the durability of the window; moreover, the enlarged window design permits users to fully display and admire all components of the liquid-cooling system. Show off your dedicated set in the subtlest manner!

Fully Modular Concept

The View 31 TG comes with fully modular drive cages that provide the ease of installation/removal and maximize the interior space for custom cooling loop. Especially, the tool-less drive bay design allows users to freely interchange the 3.5” and 2.5” hard-drives to suit their particular needs.

Riser GPU Support Bracket

Specially designed with dual GPU placement, the View 31 TG has the support for vertical graphic card layout with dual PCI-E slots design. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard.
Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU solutions.

Dust Reduction

Magnetic fan filter on the top simply attaches the filter for dust filtration. Super fine fan filters with excellent protection and reduction against dirt and dust at the bottom.

Made for High-End PCs with Outstanding Expandability

The View 31 TG features its cable management with maximum 50mm in width, and supports up to a tower CPU cooler with maximum height 180mm, and a dual expansion slot VGA of up to 420mm in length without HDD rack. Moreover, the View 31 TG has the ability to accommodate multiple 3.5”/2.5” storage devices at the same time. Most importantly, the hidden drive bay design guarantees expandability for more liquid cooling components.

Advanced Ventilation

The View 31 TG Series delivers advanced cooling performance for DIY/AIO liquid cooling and air cooling systems. With wide top-to-bottom side ventilation grills, the View 31 TG maximizes the air intake with two built-in 140mm Riing Blue LED fans. It includes options for up to (3) 120mm or 140mm front fans, combined with (2) bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with (1) rear built-in 140mm fan and (3) sectional top mounts to manage proper air flow in and out.

Learn More

View 31 TG Radiator Supporting List

Radiator Compatibility List
120mm 140mm 240mm 280mm 360mm
Front
*
*
*
*
*
Top
*
*
*
*
*
Rear
*
*

Bottom
*
*

All-in-One Compatibility List (Water 3.0 Series)
Performer Pro Extreme Ultimate
Front
*
*

Top
*
*
*
*

View 31 TG Fan Supporting List

Fan Compatibility List
120mm 140mm 200mm
Front 3 2 1
Top 3 3 2
Rear 1 1
Bottom 2 2
Thermaltake Compatible Fan
120mm 140mm 200mm
Pure Fan Series
*
*
*
Luna Fan Series
*
*
*
Riing Fan Series
*
*


More Information
P/N CA-1H8-00M1WN-00
Series View
Model View 31 TG
Case Type Mid Tower
Dimension (H x W x D) 497 x 250 x 511 mm
(19.5 x 9.8 x 20.1 inch)
Net Weight 9.9 kg / 21.8 lb
Side Panel 4mm Tempered Glass x 2 (Left & Right)
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 1
(1000rpm, 22dBA with LNC)
Rear (exhaust) :
140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 1
(1000rpm, 22dBA with LNC)
Drive Bays
-Accessible
-Hidden
-Accessible
-Hidden
3 x 3.5’’ or 2.5’’ (HDD Cage)
Expansion Slots 8 + 2
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
LCS Upgradable Supports 1/2”、3/8”、1/4” water tube
I/O Port USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Front:
3 x 120mm , 2 x 140mm , 1 x 200mm
Top:
3 x 120mm , 3 x 140mm , 2 x 200mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
2 x 120mm , 2 x 140mm
Radiator Support Front:
1 x 360mm , 1 x 280mm
Top:
1 x 360mm , 1 x 280mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
1 x 120mm , 1 x 140mm
Clearance CPU cooler height limitation:
180mm
VGA length limitation:
278mm(with HDD rack)
420mm(without HDD rack)
PSU length limitation:
180mm (With One Bottom Fan)
220mm (Without Bottom Fan)

User Manual

  • File Name
  • Description
  • Size
  • Version
  • Release Date
  • Manual
  • Multi-language
  • 12.7 MB
  • 2016-12-28
