The View 380 TG ARGB Mid Tower Chassis is a dual chamber ATX chassis that supports Hidden-Connector Motherboards from ASUS, MSI and GIGABYTE and comes with four Hydraulic Bearing 120mm ARGB Lite Fans. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to ten 120mm fans can be installed in the chassis, and up to one 360mm radiator can be placed on the top and one 280mm/240mm radiator at the right, giving end-users more flexibility to build their ideal configuration.
- The image is for reference only.
Created for next-generation motherboards, the View 380 features a special design that enables support for both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE. *Compatible with hidden-connector motherboards: ASUS BTF Series MSI PROJECT ZERO Series GIGABYTE PROJECT STEALTH Series
- The image is for reference only.
Providing good cooling support, users can choose to place a 360mm radiator on the top or a 280mm/240mm radiator at the right of the View 380 TG ARGB Mid Tower Chassis.
The View 380 TG ARGB Mid Tower Chassis comes with four Hydraulic Bearing 120mm ARGB Lite Fans at the rear and the motherboard side. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
The View 380 TG ARGB Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

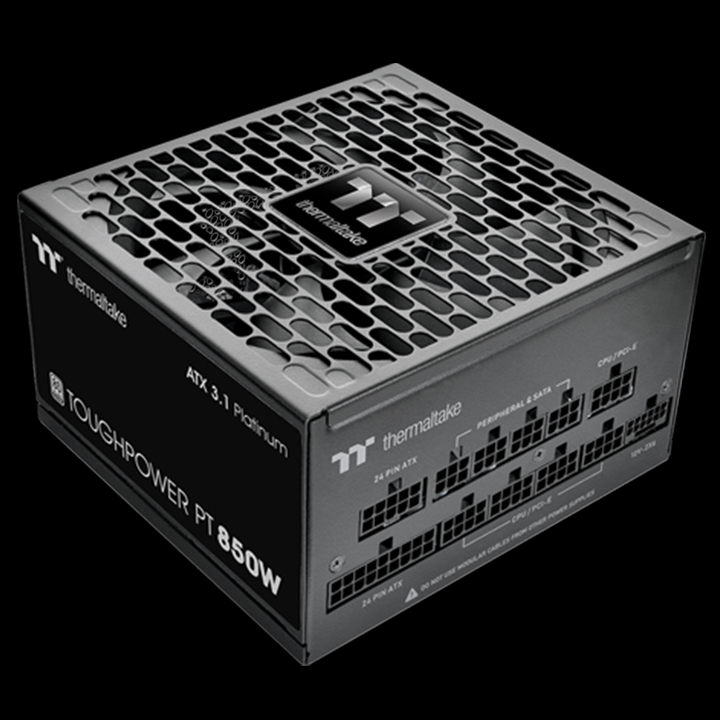

| AC INPUT |
Input Voltage: 100-240V~
|
||||
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
| Max Output Current |
20A |
20A |
70.8A |
0.3A |
3A |
| Max Output Power |
100W |
849W |
3.6W |
15W |
|
| Total Power |
850W |
||||
- The image is for reference only.
Soft black cables come with sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) |
X 1 |
|
X 1 | 600mm |
| ATX 12V (4+4Pin) |
X 2 |
|
X 2 | 650mm |
| PCIe (6+2Pin) |
X 4 |
|
X 2 | 500mm+150mm |
| SATA (5Pin) |
X 6 |
|
X 2 | 500mm+150mm+150mm |
| Peripheral (4Pin) |
X 4 |
|
X 1 | 500mm+150mm +150mm+150mm |
| FDD Adapter | X 1 |
|
X 1 | 150mm |
- The image is for reference only.
The dual chamber design provides more build space, better cable management, and improved airflow for better flexibility.
- The image is for reference only.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
Two USB 3.0, one USB 2.0 and HD Audio ports are placed on the top panel to grant direct access when needed.
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | 420 Series | |
|---|---|---|---|---|---|---|
| (M/B Side) Right | ● | ● | - | ● | ● | - |
| Top | ● | ● | ● | - | - | - |
| Rear | ● | - | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Right(M/B Side) | 3 | 2 | - |
| Top | 3 | - | - |
| Rear | 1 | - | - |
| P/N | CA-3Z2-85M1WG-00 |
|---|
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
View 380 TG ARGB C+P 850W Manual
- 2025-10-21
