  • View 390 Air Snow Mid Tower Chassis
View 390 Air Snow Mid Tower Chassis View 390 Air Snow Mid Tower Chassis View 390 Air Snow Mid Tower Chassis View 390 Air Snow Mid Tower Chassis View 390 Air Snow Mid Tower Chassis View 390 Air Snow Mid Tower Chassis
View 390 Air Snow Mid Tower Chassis

View 390 Air Snow Mid Tower Chassis

Out of stock
P/N
CA-11F-00M6WN-00
USD$139,99
The View 390 Air Snow Mid Tower Chassis is an ATX case with a curved tempered glass side/top panel, a perforated front panel, rotational PCI-E slots, a GPU bracket and two CT120 rear fans. An optional 6" LCD Screen Kit is available for enhanced visuals.

  • The image is for reference only.
    •
The Tower 250 Mint Strawberry Mini Tower Chassis

Compatible with Hidden-Connector Motherboards

Designed for next-gen builds, the View 390 Air Snow Mid Tower Chassis supports both standard and hidden-connector motherboards from ASUS, MSI, and GIGABYTE.

*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

  • The image is for reference only.

Curved Tempered Glass Side Panel

The View 390 Air Snow Mid Tower Chassis features a 4mm curved tempered glass side panel for a distinctive look.

The Tower 250 Mint Strawberry Mini Tower Chassis
  • The image is for reference only.
The Tower 250 Mint Strawberry Mini Tower Chassis with cooling support

Two CT120 PC Cooling Fans Pre-installed

The View 390 Air Snow Mid Tower Chassis features two 120mm PWM fans at the rear to provide good cooling performance.

  • The image is for reference only.

Good Cooling Support

The View 390 Air Snow Mid Tower Chassis can support up to two 200mm fans at the front, up to eleven 120mm fans in total, and a 360mm AIO radiator at the front or the motherboard side, providing good cooling capability.

The Tower 250 Mint Strawberry Mini Tower Chassis with cooling support
  • The image is for reference only.

Display It Your Way

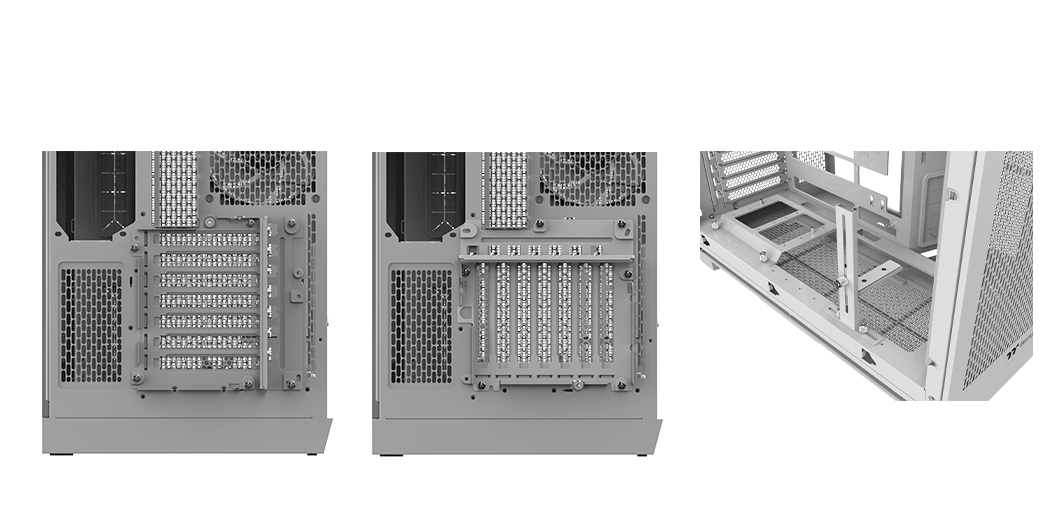

The rotatable PCI-E slots support both horizontal and vertical GPU mounting. An included GPU holder and riser cable bracket also help to support the GPU and prevent sagging.

Top view of The Tower 250 Mint Strawberry showing pre-installed 120mm PWM cooling fans
  • The image is for reference only.
    •

Visually Pleasing, Totally Interactive

Maximize your View 390 Air’s visual effects by upgrading it with our LCD Screen Kit.

The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the latest TT RGB Plus software.

The Tower 250 Mini Tower Chassis
  • The image is for reference only.
    •
GF500 Flight Simulator Cockpit side view with adjustable components

Personalize Your LCD Display

Through the TT RGB Plus, the 6‘’ LCD display presents real-time information and plays JPG and GIF files with at a 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.

Air Intake and Exhaust

Thanks to the perforated front panel and two CT120 rear fans, View 390 Air Snow Mid Tower Chassis still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

The Tower 250 Mini Tower Chassis
  • The image is for reference only.
    •

We've Tested Everything, So You Don’t Have To

At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The View 390 Air Mid Tower Chassis products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.

Component Model
Chassis View 390 Air Snow
Motherboard ASUS ROG Maximus Z890 Hero
CPU Intel® Core™ Ultra9-285K Processor (TDP 250W)
GPU ASUS ROG Strix GeForce RTX® 5090 OC 32GB GDDR7
RAM TOUGHRAM Z-ONE RGB D5(16G x 2)
SSD Seagate SSD 120G
PSU Toughpower TF1 1550W- TT Premium Edition
CPU Cooler TOUGHLIQUID V2 Ultra 360 AIO Liquid Cooler
Fans AIO:
CT 120mm x 3
Chassis:
CT 120mm x 5
CT 200mm x 2
The Tower 250 Mini Tower Chassis

CPU & GPU Thermal Stress Test
View 390 Air

The Tower 250 Mini Tower Chassis

Massive Airflow & Incredible Performance

Thermal images taken during thermal testing. We can see that View 390 Air Snow guarantees good cooling performance and a low internal temperature while using the highest quality components.

Idle
Full Load
The Tower 250 Mini Tower Chassis

Storage Support

The drive plate at the right chamber of the chassis supports up to two 3.5'' HDDs or up to three 2.5'' SSDs for storage expansion.

How Much Storage Is Totally Up To You
  • The image is for reference only.
    •

Good Dust Protection

There are removable filters at the right and the bottom of the chassis to protect the system.

How Much Storage Is Totally Up To You
  • The image is for reference only.
    •
  • The image is for reference only.
    •


All-in-One Compatibility List

All-in-One Compatibility List

  120mm 240mm 360mm 140mm 280mm 420mm
Front ● ● ● ● ● -
Right Side ● ● ● - - -
The Tower 250 Mini Tower Chassis

Fan Compatibility List

Fan Compatibility List

  120mm 140mm 200mm
Front 3 2 2
Right Side 3 - -
Left Side - - -
Rear 2 - -
Bottom 3 - -
The Tower 250 Mini Tower Chassis
More Information
P/N CA-11F-00M6WN-00
Series View
Case Type Mid Tower
Dimension (H x W x D) 503 x 287 x 485mm
(19.80 x 11.30 x 19.1inch)
Side Panel 4mm Tempered Glass x 1
Color Snow
Material SPCC
Cooling System Rear (exhaust): 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 2
Drive Bays
-Accessible
-Hidden		 2 x 3.5” , 1 x 2.5” or 3 x 2.5”
Expansion Slots 7(Rotatable Patented Design)
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
Hidden-Connector Motherboard 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Front:
3 x 120mm
2 x 140mm
2 x 200mm

Right:
3 x 120mm

Rear:
2 x 120mm

Bottom:
3 x 120mm
Radiator Support Front Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
Clearance CPU cooler height limitation: 160mm

VGA length limitation:
390mm with Radiator /420mm without Radiator

PSU length limitation: 200mm (with 2.5” SSD)
260mm (without 2.5” SSD)
