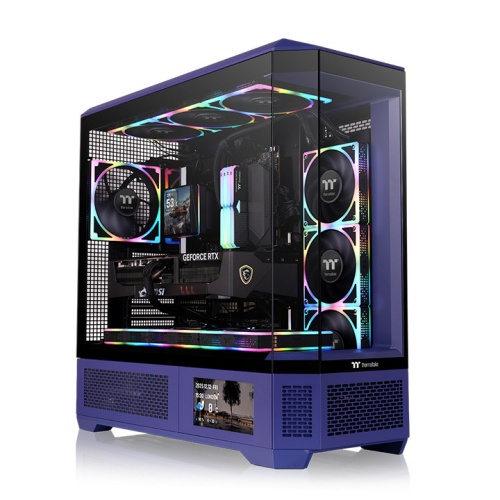

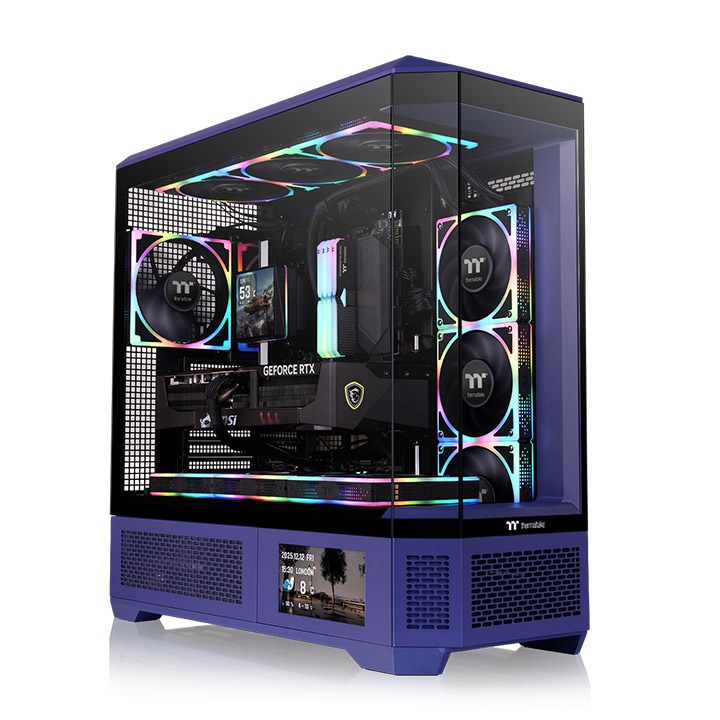

View 600 TG Future Dusk Full Tower Chassis
ATX
120/140mm fans
GPU: 480
Power Supply: 220
2 × USB 3.0
1 × HD-Audio
3 × 2.5” SSD
Four Tempered Glass Panels for Maximum Visibility

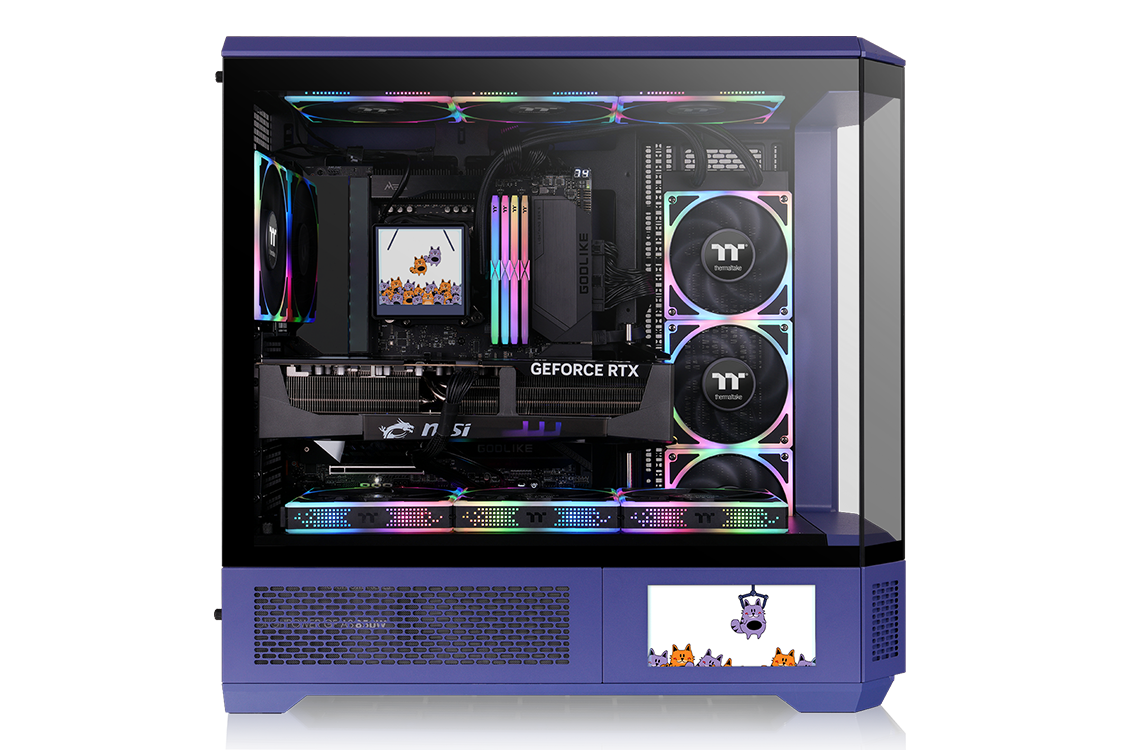

The View 600 TG Future Dusk Full Tower Chassis features a distinctive shape and enhanced visibility with four 4mm tempered glass panels on the front and left, allowing users to showcase their system.
The image is for reference only.

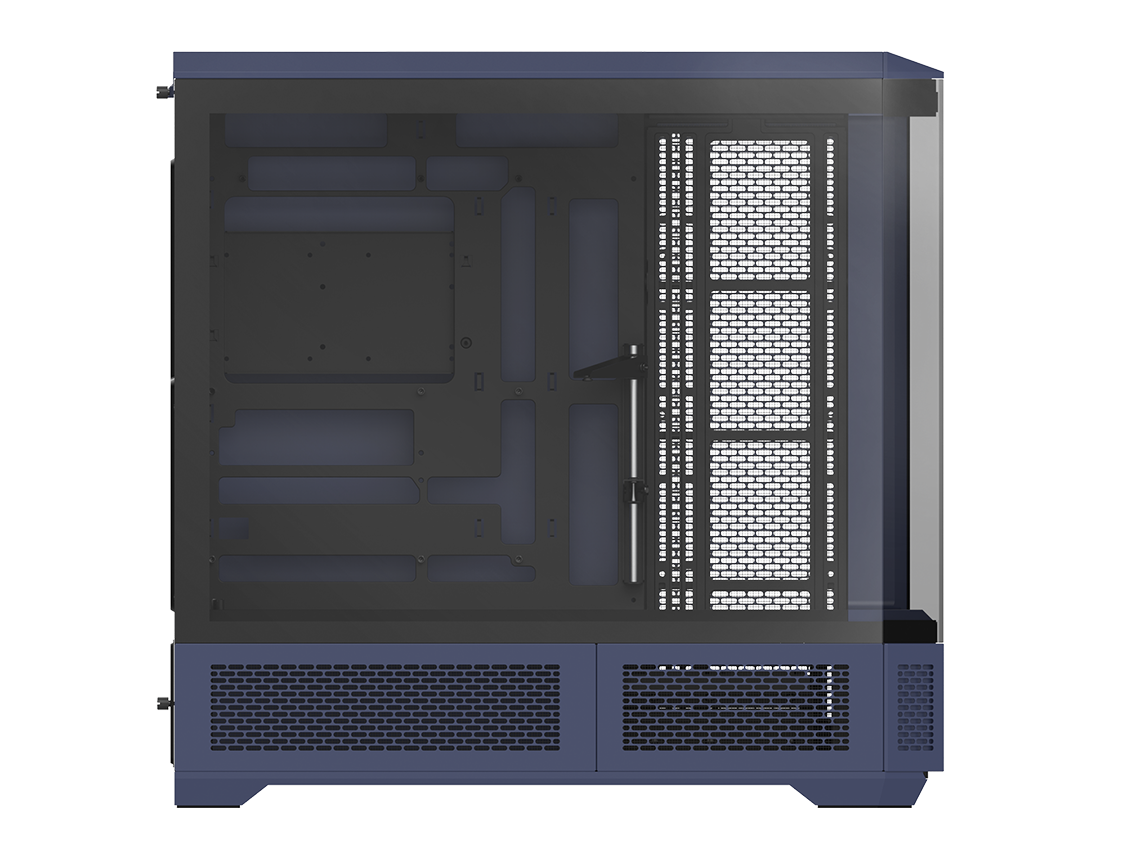

Compatible with Hidden-Connector Motherboards
Designed for next-gen builds, the View 600 TG Future Dusk Full Tower
Chassis supports E-ATX motherboards, including standard and hidden-connector ATX/Micro-ATX
models from ASUS, MSI, and GIGABYTE.
*Compatible with hidden-connector
motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
The image is for reference only.

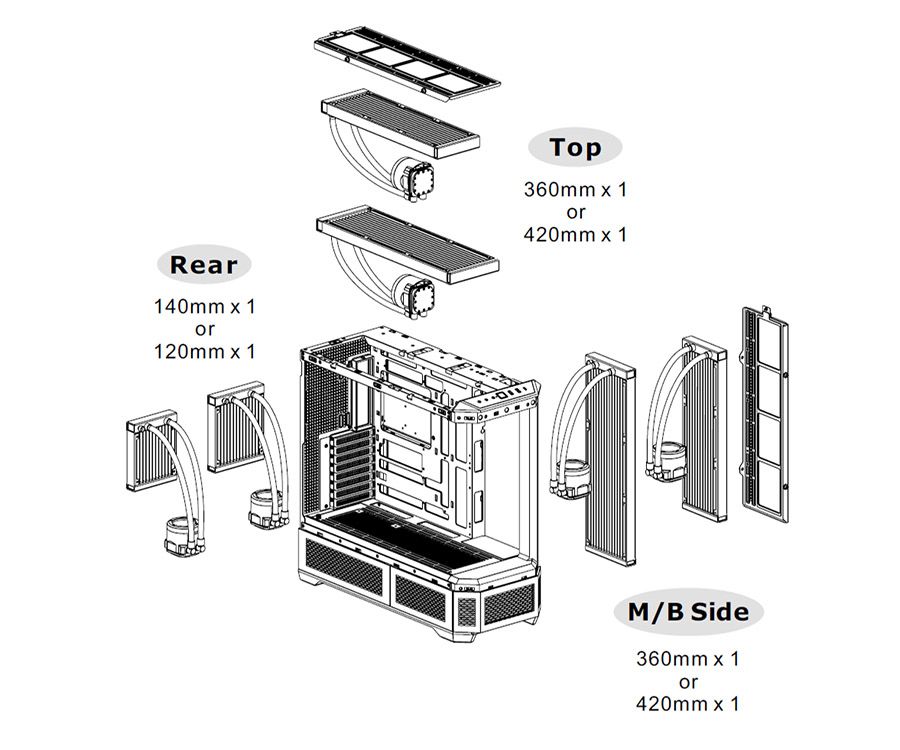

Optimized Radiator Support
The View 600 TG Future Dusk offers excellent cooling flexibility, supporting up to 420mm or 360mm radiators on both the top and motherboard side.
The image is for reference only.

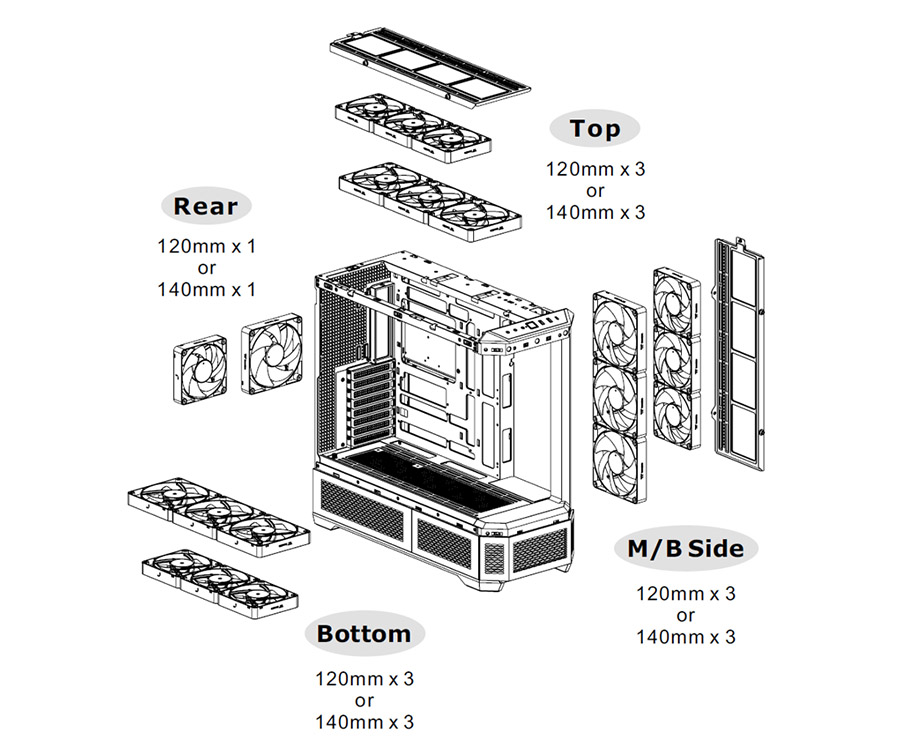

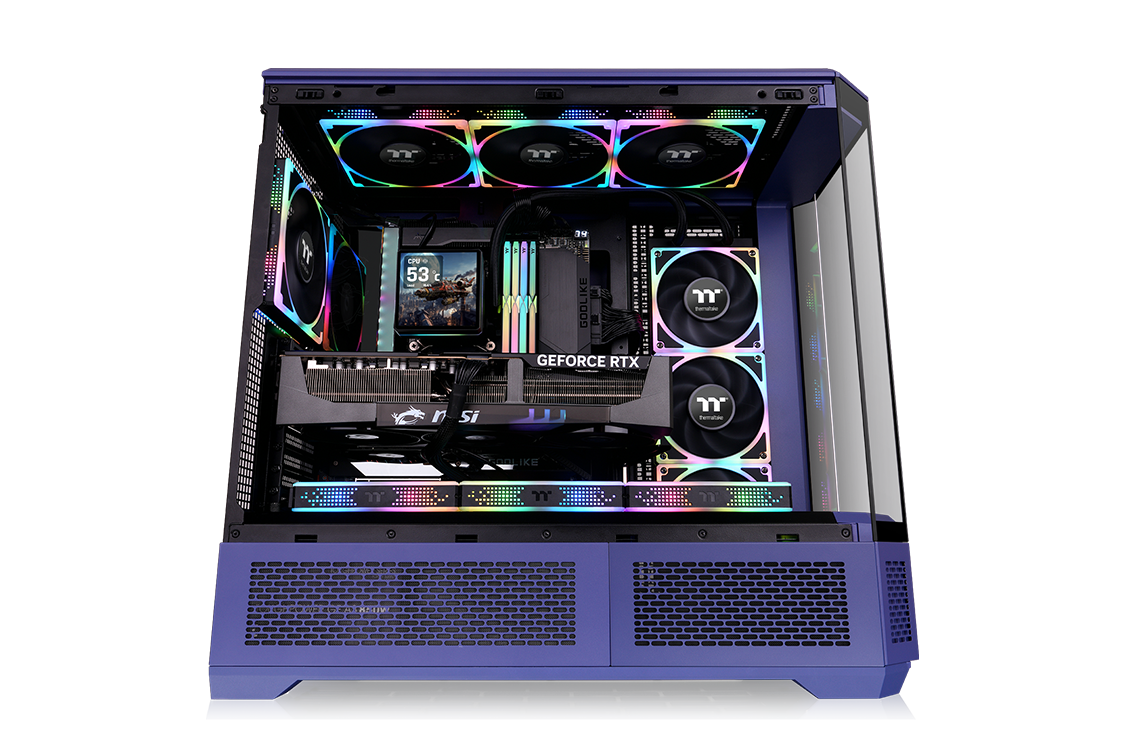

Exceptional Fan Support
Designed for high-performance cooling, the View 600 TG Future Dusk Full Tower Chassis supports up to ten 120mm or 140mm fans, giving users maximum airflow customization to their system.
The image is for reference only.

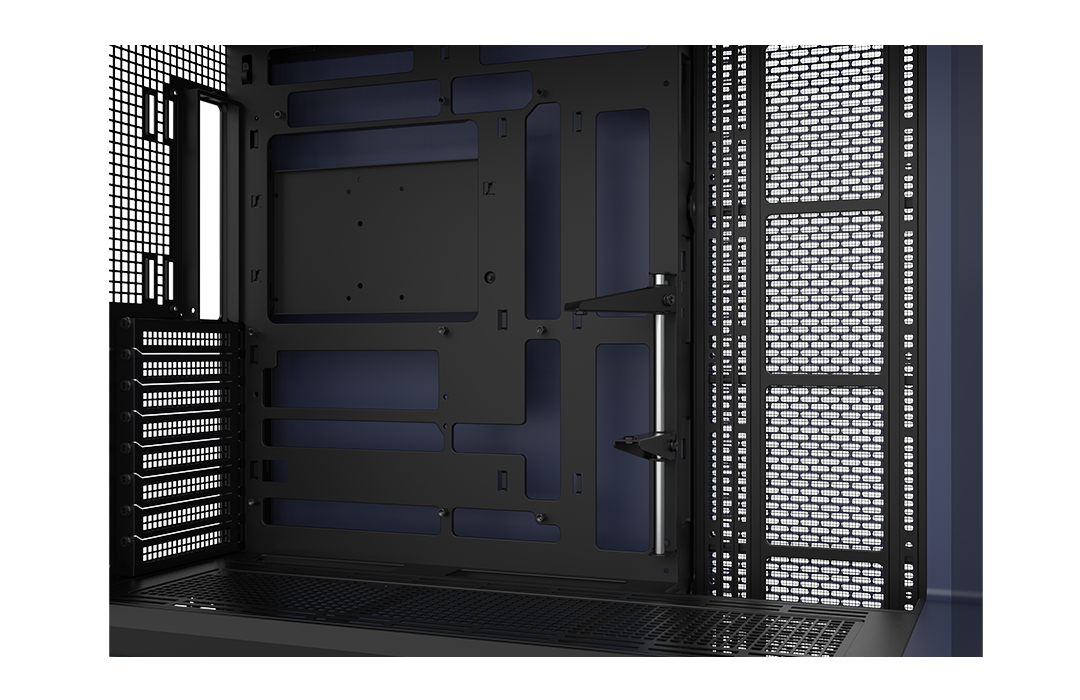

GPU Holder
The View 600 TG Future Dusk series chassis features a built-in graphics card holder for added support to prevent sagging.
The image is for reference only.

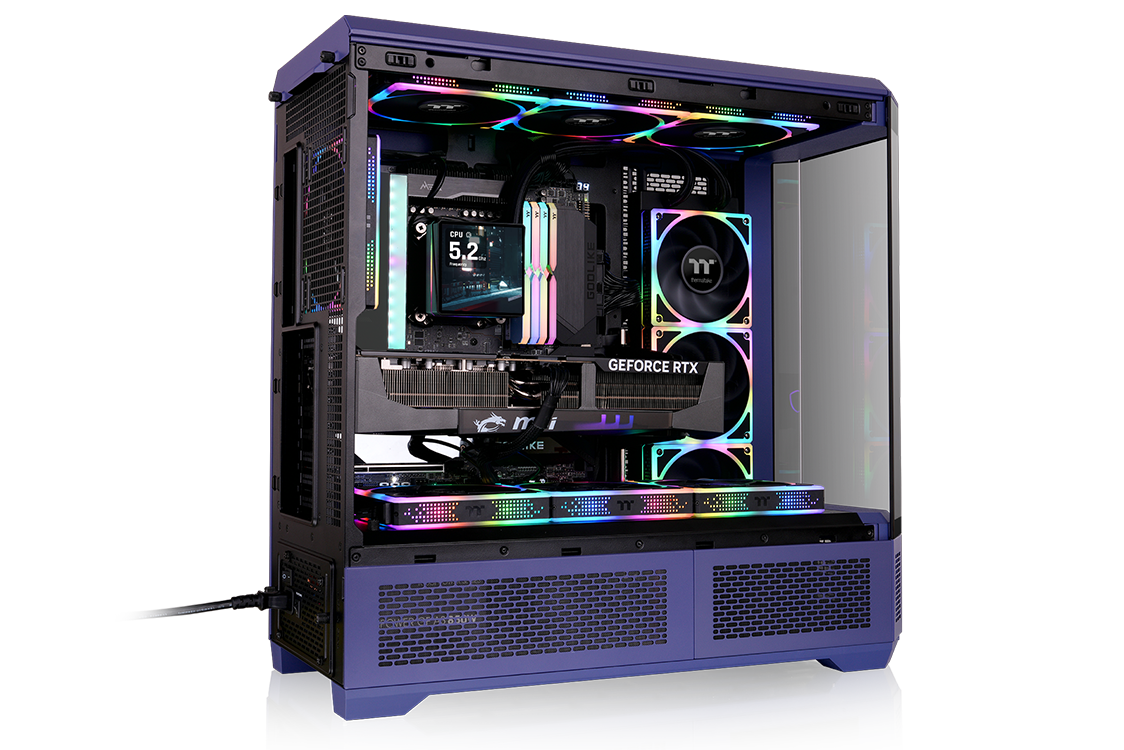

Visually Pleasing, Totally Interactive

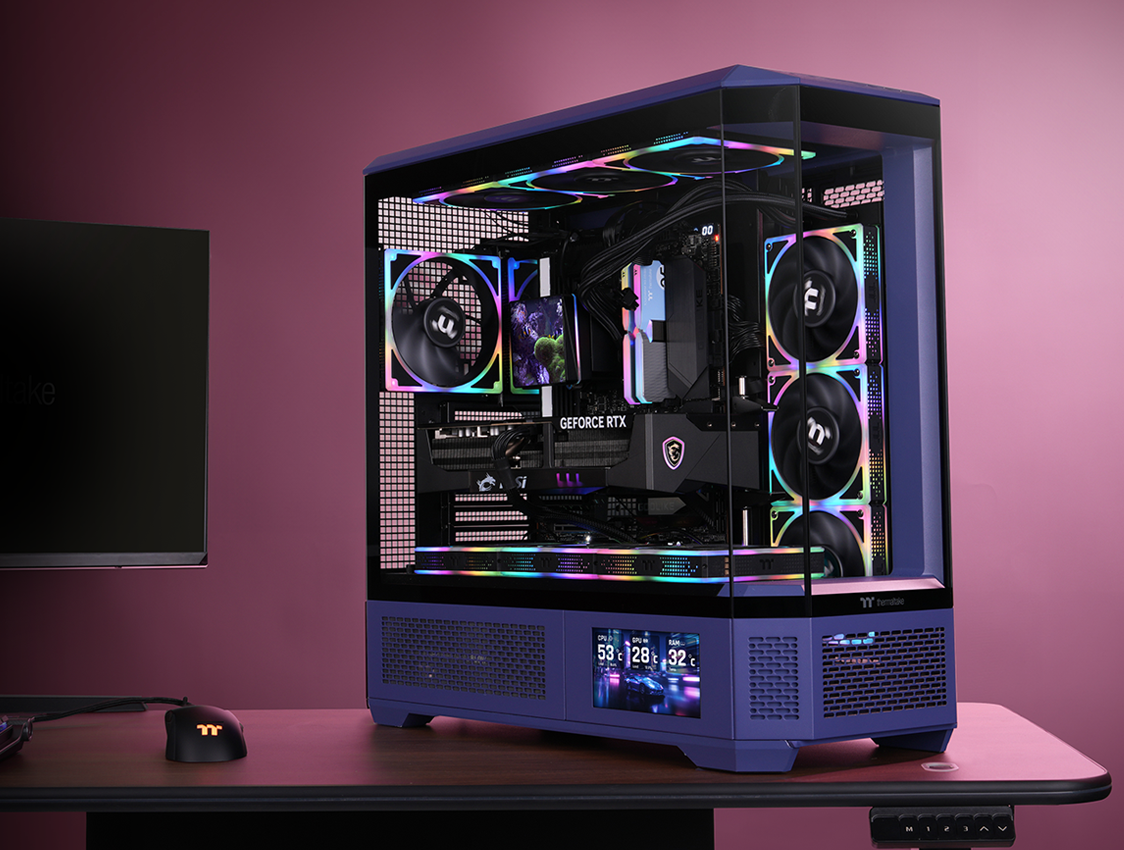

Maximize your View 600 TG Future Dusk’s visual effects by upgrading it with our LCD Panel Kit.
The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs
to add extra flair using the TT RGB Plus software.
The image is for reference only.
Personalize Your LCD Display
Through the latest TT RGB Plus, the 6‘’ LCD display
presents real-time information and plays JPG and GIF files with at a 1480*720 resolution. It
comes with six default background styles, and users can upload up to 20 custom images.
Additionally, the display can show time and weather information, enhancing both visual
appeal and customization options for your build.

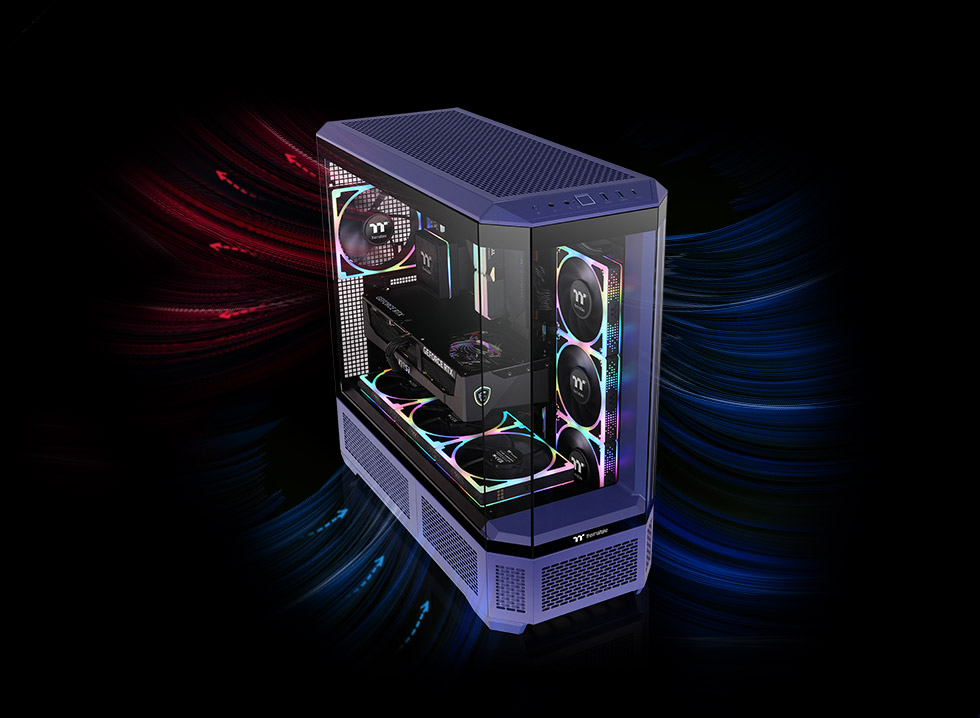

Air Intake and Exhaust
Thanks to its spacious interior, the View 600 TG Future Dusk Full Tower Chassis still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.
The image is for reference only.
We've Tested Everything, So You Don’t Have To
At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The View 600 TG products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.
Test System
- Chassis：View 600 TG Snow
- Motherboard：ASUS ROG Maximus Z890 Hero
- CPU：Intel® Core™ Ultra9-285K Processor (TDP 250W)
- GPU：ASUS ROG Strix GeForce RTX™ 5090 OC 32GB GDDR7
- RAM：TOUGHRAM XG RGB D5 (16GB x2)
- SSD：Seagate SSD 120G
- PSU：Toughpower GF3 Snow 1200W
- CPU Cooler：MAGFloe 420 Ultra ARGB Sync Snow Edition
- FANs：
AIO: SWAFAN EX14 ARGB x 3
Chassis: TOUGHFAN EX 140 ARGB x 7
CPU & GPU Thermal Stress Test
View 600 TG Future Dusk
Massive Airflow & Incredible Performance

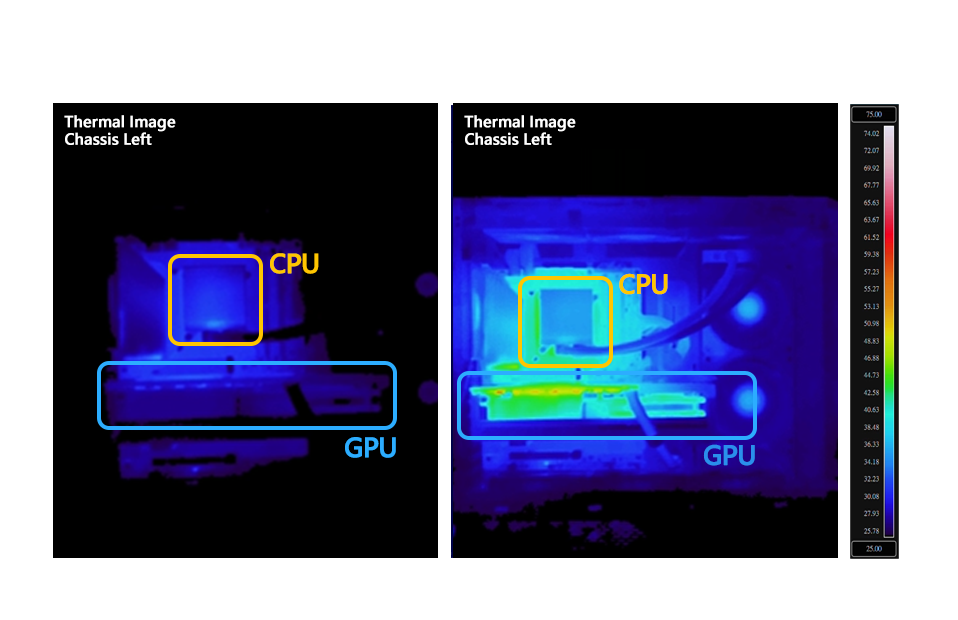

Thermal images taken during thermal testing. We can see that View 600 TG Future Dusk guarantees good cooling performance and a low internal temperature while using the highest quality components.
Perfect Dust Protection
The View 600 TG Future Dusk Full Tower Chassis features dust filters on the top, bottom, and motherboard sides to protect the system.
The image is for reference only.

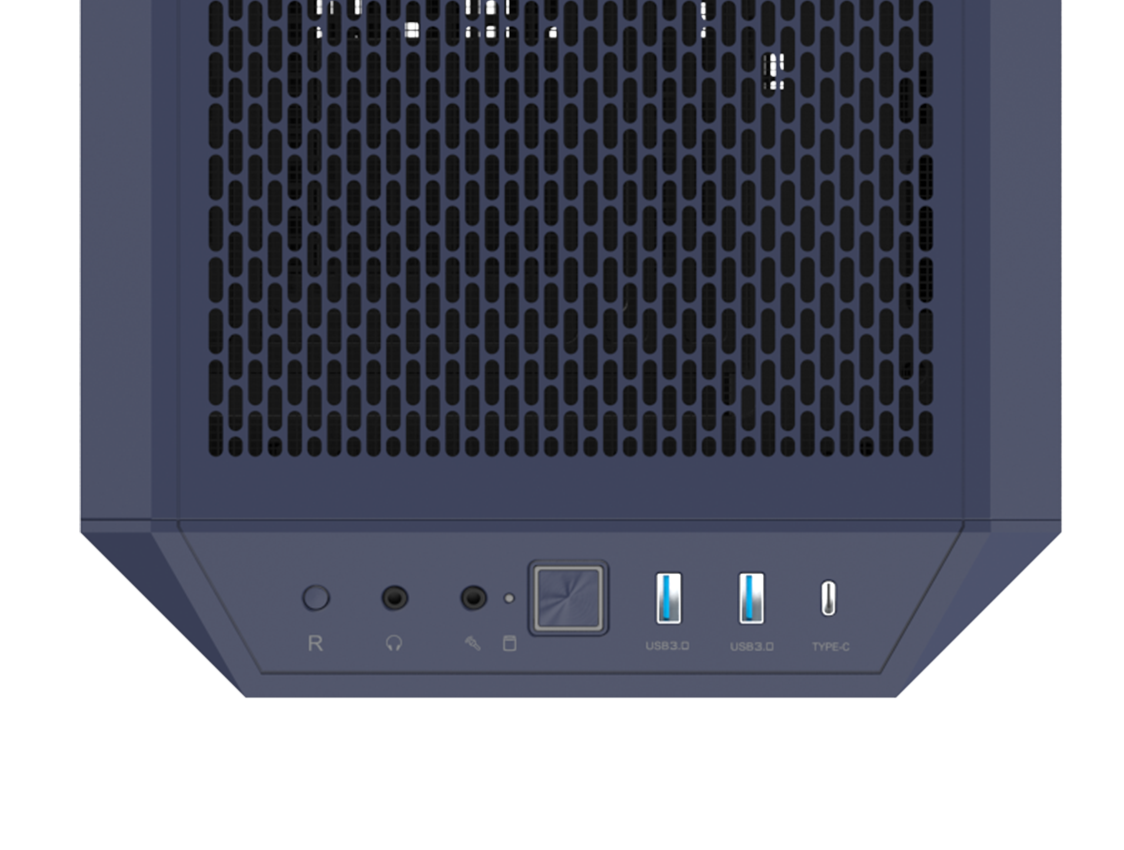

Handy I/O Ports
Two USB 3.0, one USB 3.2 Gen 2 Type C, one reset button and HD Audio ports are placed on
the top panel to grant direct access when needed.
Top-located I/O ports consist of following functions:
- Power Button with Integrated Power LED (White)
- HDD LED (Red)
- USB 3.0 Type-A x 2
- USB 3.2 Gen 2 Type-C x 1
- HD Audio
- Reset Button
''
The image is for reference only.
All-in-One Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Top | ● | ● | ● | ● | ● | ● |
| Right | ● | ● | ● | ● | ● | ● |
| Rear | ● | - | - | ● | - | - |
Fan Support List
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Top | 3 | 3 | - |
| Right | 3 | 3 | - |
| Power Cover | 3 | 3 | - |
| Rear | 1 | 1 | - |
| P/N | CA-11H-00FNWN-00 |
|---|---|
| Case Type | Full Tower |
| Dimension (H x W x D) | 560 x 249 x 584 mm (22.06 x 9.8 x 22.98 inch) |
| Side Panel | 4mm Tempered Glass x 4 |
| Color | Future Dusk |
| Material | SPCC |
| Cooling System | N/A |
| Expansion Slots | 8 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX) |
| Hidden-Connector Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 3 x 120mm 3 x 140mm Right: 3 x 120mm 3 x 140mm Rear: 1 x 120mm 1 x 140mm Power cover: 3 x 120mm 3 x 140mm |
| Radiator Support | Top : 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Right: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Rear: 1 x 120mm 1 x 140mm |
| Clearance | CPU cooler height limitation: 175mm VGA length limitation: 480mm PSU length limitation: 220mm |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
View 600 TG Manual
- 2025-07-30
