Thermaltake View 91 Tempered Glass RGB Plus Edition Super Tower Chassis Thermaltake View 91 Tempered Glass RGB Plus Edition Super Tower Chassis Thermaltake View 91 Tempered Glass RGB Plus Edition Super Tower Chassis Thermaltake View 91 Tempered Glass RGB Plus Edition Super Tower Chassis Thermaltake View 91 Tempered Glass RGB Plus Edition Super Tower Chassis Thermaltake View 91 Tempered Glass RGB Plus Edition Super Tower Chassis Thermaltake View 91 Tempered Glass RGB Plus Edition Super Tower Chassis

Thermaltake View 91 Tempered Glass RGB Plus Edition Super Tower Chassis

Out of stock
P/N
CA-1I9-00F1WN-00
USD$499,99

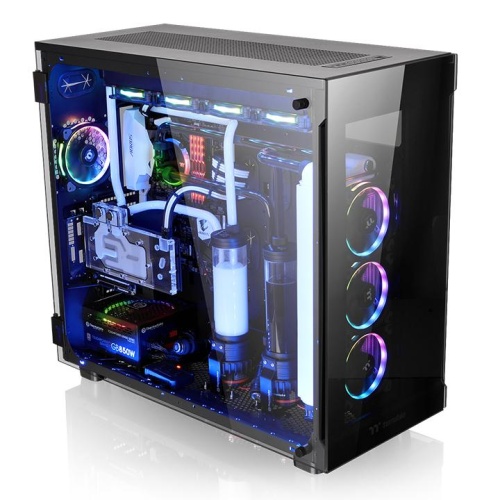

XL-ATX super tower chassis with three tempered glass windows and four preinstalled 140mm fans.

*The image is for reference only; four Riing Plus 14 RGB fans are included.

*The image is for reference only; four Riing Plus 14 RGB fans are included.

The item is prebuilt.




*PCI-e riser cable is optional.

*Note: Cable management compatibility may vary based on motherboard size and design.

*The image is for reference only; four Riing Plus 14 RGB fans are included.

View 91 TG RGB Radiator Supporting List

Radiator Compatibility List
120mm 240mm 360mm 480mm 140mm 280mm 420mm 560mm 200mm 400mm 600mm
Front
*
*
*
*
*
*
*
-
-
-
-
Top
*
*
*
*
*
*
*
-
*
*
-
Rear
*
-
-
-
*
-
-
-
-
-
-
Bottom
*
-
-
-
*
*
-
-
-
-
-
Right Side
*
*
*
*
*
*
*
-
-
-
-

All-in-One Compatibility List (Water 3.0 and Floe series)
Performer Pro 240 Series 360 Series 140 Series 280 Series
Front
-
-
-
-
-
-
Top
*
*
*
*
*
*
Rear Side
*
*
*
*
*
*
Rear
*
*
-
-
*
-
※Right Side: Install the Radiator in front of the M/B Tray

More Information
P/N CA-1I9-00F1WN-00
Series View
Case Type Super Tower
Dimension (H x W x D) 691 x 344 x 645 mm
(27.2 x 13.5 x 25.4 inch)
Net Weight 26.8 kg / 59.08 lb
Side Panel 5mm Tempered Glass x 3 (Left & Right & Front)
Color Exterior & Interior : Black
Material SPCC
Cooling System Rear (exhaust) :
140 x 140 x 25 mm Riing Plus RGB fan
(500-1400rpm, 27.2dBA)
Front (intake) :
140 x 140 x 25 mm Riing Plus RGB fan
(500-1400rpm, 27.2dBA) x3
Drive Bays
-Accessible
-Hidden

12 x 3.5’’ or 2.5’’ (HDD Cage)
Expansion Slots 10 + 2
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) ,
12” x 13” (E-ATX) , 13.6” x 10.4” (XL-ATX)
LCS Upgradable Supports 1/2”、3/8”、1/4” water tube
I/O Port USB 3.0 x 4, Type-C x 1,HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Front:
4 x 120mm , 3 x 140mm
Top:
4 x 120mm , 3 x 140mm , 2 x 200mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
3 x 120mm , 3 x 140mm
Right Side(Behind M/B Tray):
8 x 120mm , 8 x 140mm , 6 x 200mm
Radiator Support Front:
1 x 480mm , 1 x 420mm
Top:
1 x 480mm , 1 x 420mm , 1 x 400mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
1 x 280mm
Right Side(In front of M/B Tray):
1 x 480mm, 1 x 420mm
Clearance CPU cooler height limitation:
200mm
VGA length limitation:
470mm(with HDD rack)
600mm(without HDD rack)
PSU length limitation:
180mm (With Three Bottom Fans)
220mm (With Two Bottom Fans)
